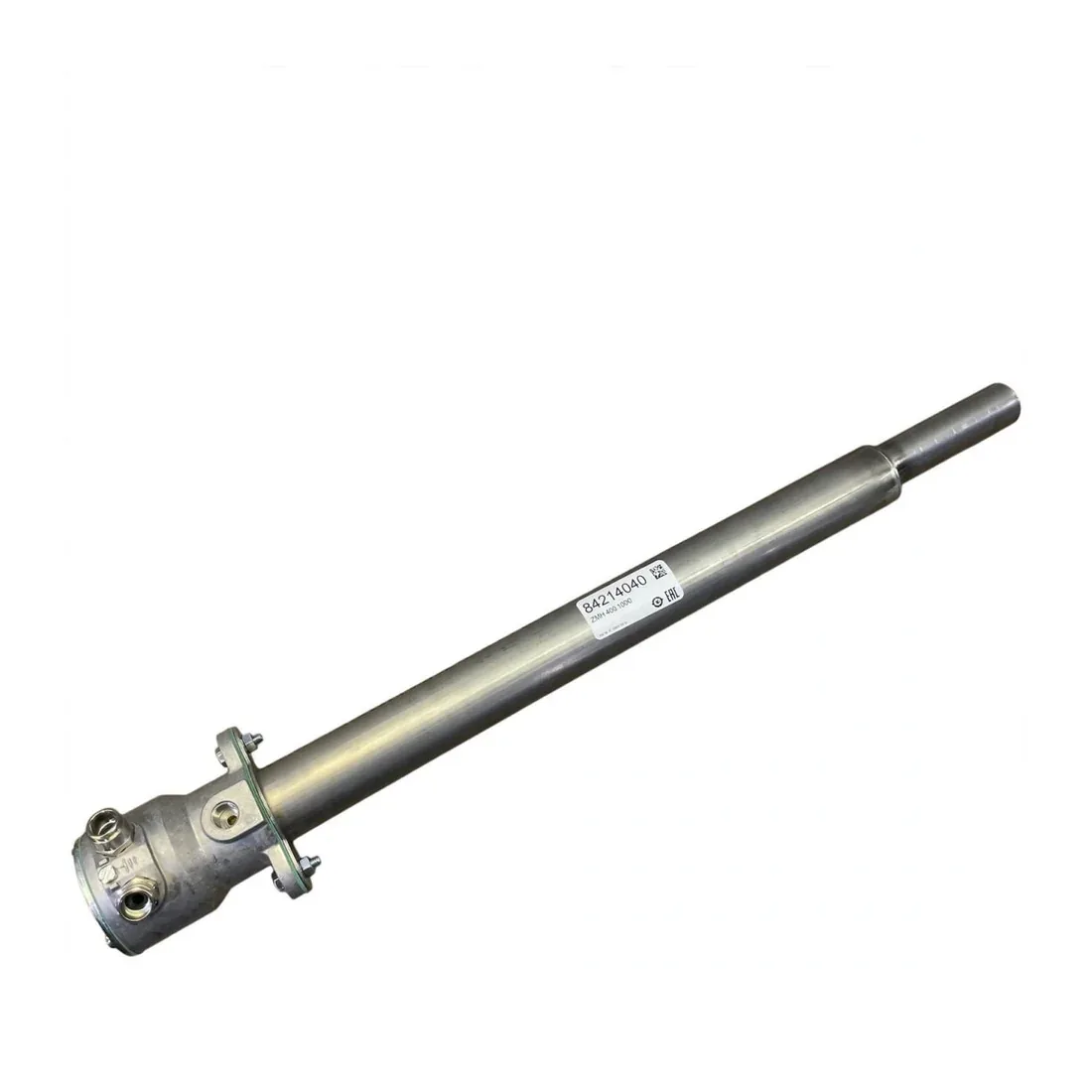

Kromschröder Pilot Burner ZKIH 400/100R (84214040)

The Kromschröder ZKIH 400/100R (Part No. 84214040) is a genuine forced-air pilot burner used for the safe ignition of industrial gas burners in conjunction with Kromschröder's automatic burner control units (IFS/IFD or PFS/PFD). It delivers a capacity of 2 to 7 kW (up to 5 kW on natural gas) and runs on natural gas, town gas, LPG, or coke oven gas, with a 400/100 mm burner tube length and threaded connections. The burner uses direct spark ignition (via a 5 kV ignition transformer) with ionization-electrode flame monitoring, an aluminium housing, a stainless steel protective tube, and a heat-resistant steel flame tube rated up to 1000°C at the tip. Manufactured by Honeywell Kromschröder, Germany, and supplied by R.K. Instruments & Controls.
