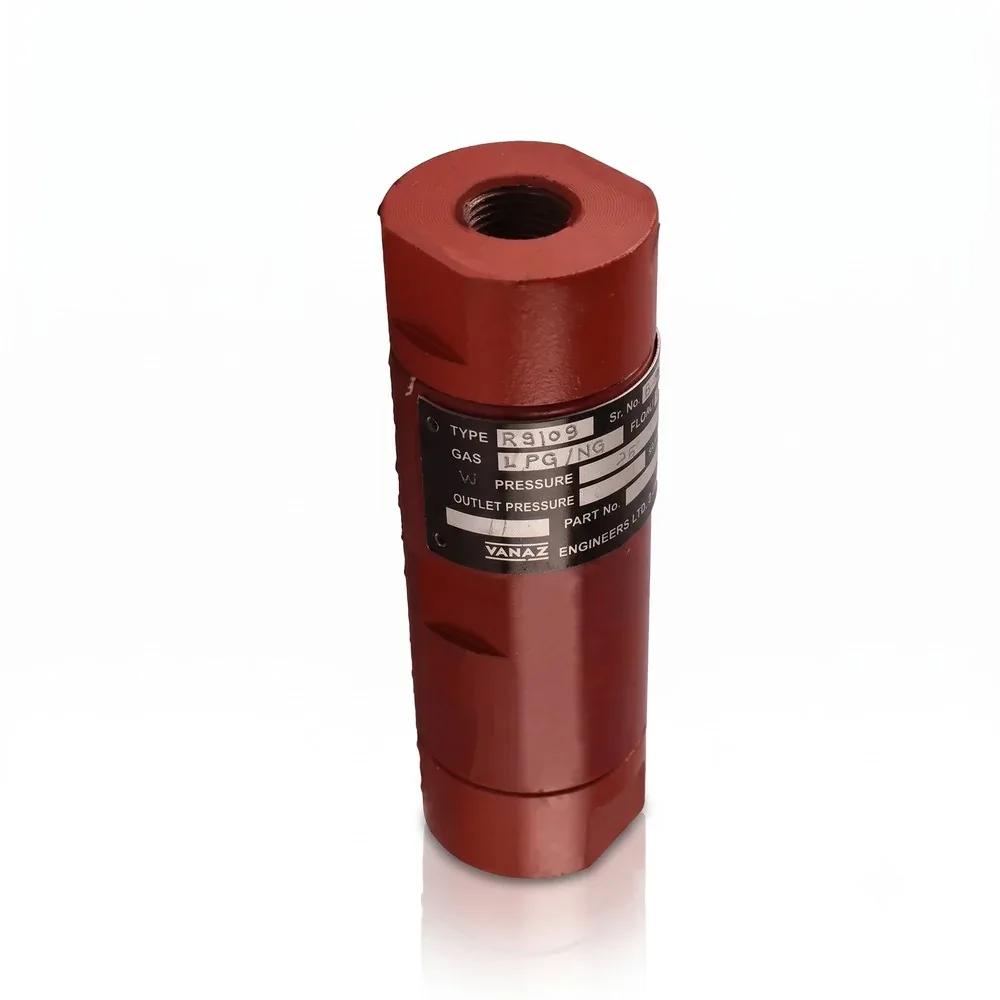

Vanaz R9109 Series Flame Arrestor with Non-Return Valve

Name: Vanaz R9109 Series Flame Arrestor with Non-Return Valve
Brand: Vanaz
SKU: R9109
Availability: InStock

Product Code: R9109

TypeR9109 Series

ApplicationFlame Arrestor with Non-Return Valve

Gas CompatibilityLPG / Natural Gas

Working Pressure1 – 19 Kg/cm² (bar)

End Connection1½"–2", BSP Threaded or ANSI #150 Flanged

Body MaterialCast Mild Steel / Carbon Steel Body, Brass Trim, SS Ribbon Element Pack

ManufacturerVanaz Engineers Ltd, Pune

Available Model Variants & Connection Sizes

Model	Connection Size	Connection Type
R9109	1½" (38.1 mm) BSP Female	Threaded
R9109 (I)	2" (50.8 mm) BSP Female	Threaded
R9109 (II)	1½" (38.1 mm) ANSI Class #150	Flanged
R9109 (III)	2" (50.8 mm) ANSI Class #150	Flanged

Body material, working pressure, gas compatibility and NRV function are identical across all four variants — only the end connection differs. Mention the model / connection size you need when enquiring.

The Vanaz R9109 series is a range of high-capacity flame arrestors with an integrated non-return valve (NRV), engineered for heavy-duty gas distribution manifolds. It stops flashback propagation and blocks reverse flow before it reaches upstream storage, protecting the gas line from explosion hazards. The body is Cast Mild Steel / Carbon Steel with a brass trim assembly and a stainless steel ribbon element pack. The series is available in four end-connection options — 1½″ or 2″ BSP threaded, and 1½″ or 2″ ANSI Class #150 flanged — see the table below. Working pressure is rated up to 17–19 Kg/cm² (bar) on LPG and Natural Gas. Manufactured by Vanaz Engineers Ltd, Pune.
