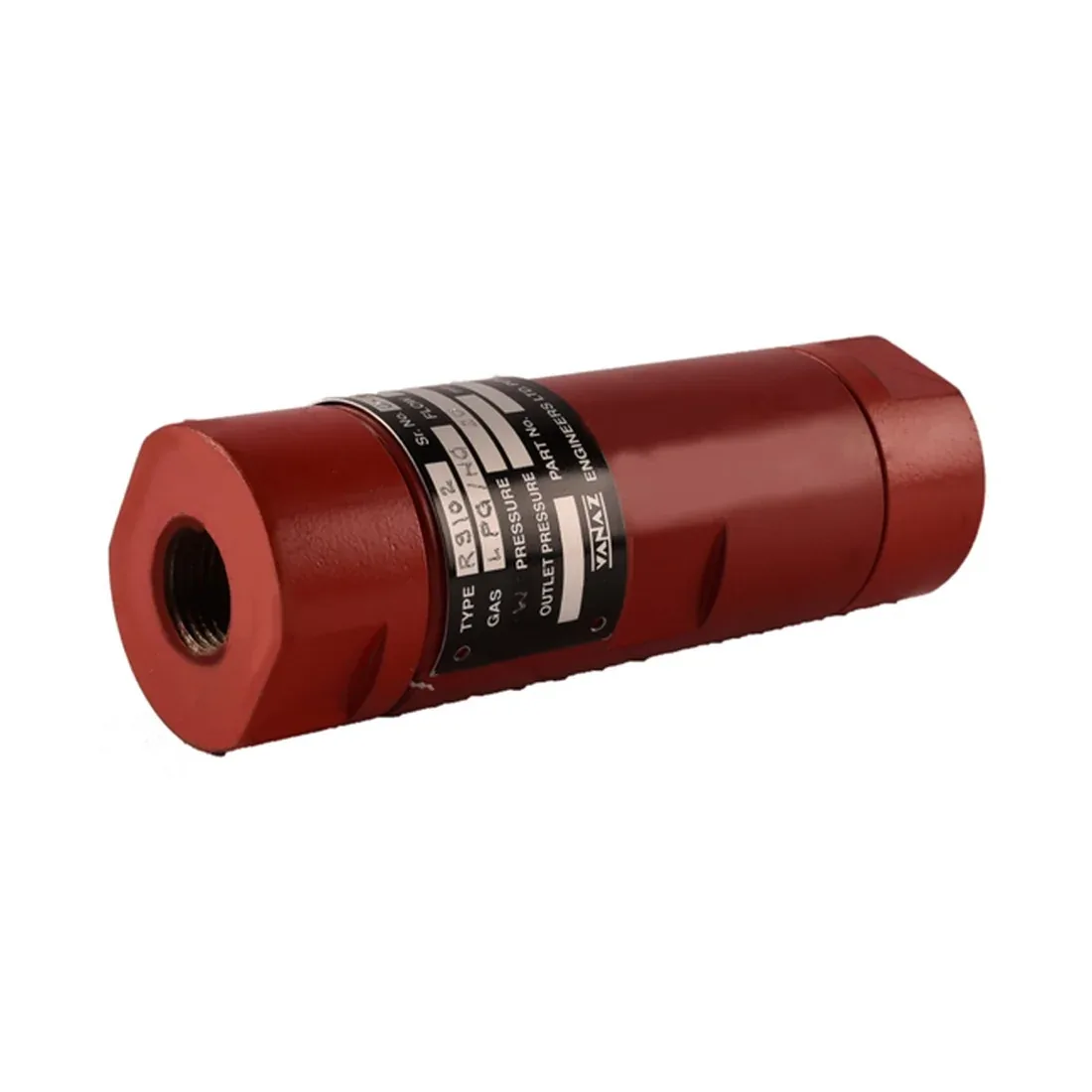

Vanaz R9102 Flame Arrestor with Non-Return Valve

Name: Vanaz R9102 Flame Arrestor with Non-Return Valve
Brand: Vanaz
SKU: R9102
Availability: InStock

Product Code: R9102

TypeR9102

ApplicationFlame Arrestor with Non-Return Valve

Gas CompatibilityLPG / Natural Gas / Air

Working Pressure1 – 19 kg/cm² (bar)

End Connection1" BSP (F), Screwed

Weight~1.54 kg

ManufacturerVanaz Engineers Ltd, Pune

The Vanaz R9102 is a flame arrestor with an integrated non-return valve (NRV), fitted in-line on LPG/gas supply piping to stop flashback (backfire) from an ignition source reaching the upstream gas line. It combines a flame-quenching element with a check-valve (NRV) function in a single compact body, with a 1″ BSP female end connection. Working pressure range is 1–19 Kg/cm² on LPG, Natural Gas and Air; weight approx. 1.54 kg. Manufactured by Vanaz Engineers Ltd, Pune.
