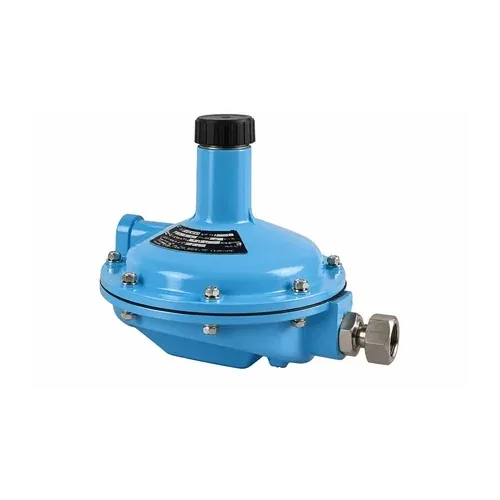

Vanaz Ammonia Low Pressure Regulator R4110 I

Name: Vanaz Ammonia Low Pressure Regulator R4110 I
Brand: Vanaz
SKU: R4110 I
Availability: InStock

Product Code: R4110 I · ½", ¾" or 1" BSP Threaded End

TypeR4110 I

Inlet Pressure1 – 17 kg/cm²

Outlet Pressure0.03 – 0.3 kg/cm² (30 – 300 mbar), spring-adjustable

Flow Rate30 Nm³/hr

End Connection½", ¾" or 1" BSP (Internal), Threaded

MediaAmmonia (NH3)

Body MaterialCast aluminium body, SS trim parts for ammonia service

ApplicationSecond-stage pressure regulator

ManufacturerVanaz Engineers Ltd, Pune

The Vanaz R4110 I is a low-pressure ammonia (NH3) pressure regulator, mainly used as a second-stage regulator in ammonia gas systems. It steps down a 1–17 kg/cm² inlet pressure to a controlled, spring-adjustable 0.03–0.3 kg/cm² (30–300 mbar) outlet at up to 30 Nm³/hr, with ½", ¾" or 1" BSP threaded end connections. Built with stainless steel trim parts for ammonia service. Manufactured by Vanaz Engineers Ltd, Pune.
