Pressure Regulator Valves R2202

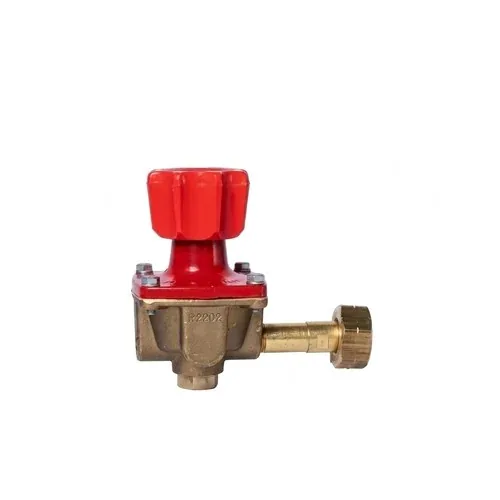

Vanaz R2202 High Pressure LPG Gas Regulator

The Vanaz R2202 is an adjustable high-pressure LPG gas regulator used for commercial and industrial gas supply lines such as canteens, restaurants and small furnaces. It accepts an inlet pressure of 0.5–17 kg/cm² and delivers a spring-adjustable outlet pressure of 0.2–2 kg/cm², with a flow capacity of up to 20 Nm³/hr on LPG. The inlet connection is a 21.8 × 14 TPI Left-Hand female union nut (standard LPG cylinder fitting), and the outlet is 1/4" BSPF. Built with a brass body and a red adjustment knob for clear pressure-range identification. Manufactured by Vanaz Engineers Ltd, Pune.
