Vanaz F0112 Gas Filter

Name: Vanaz F0112 Gas Filter
Brand: Vanaz
SKU: F0112
Availability: InStock

Product Code: F0112 · 1" BSP

ModelF0112

TypeGas Filter / Strainer

Connection Size1" BSP (Internal Threads)

Maximum Working Pressure6 Kg/cm² (bar)

Flow Capacity100 Nm³/hr

Filtration Rating20 µm (Microns)

Gas CompatibilityLPG, Natural Gas (NG), Nitrogen (N²)

Body MaterialAluminium Die-Cast

ManufacturerVanaz Engineers Ltd, Pune

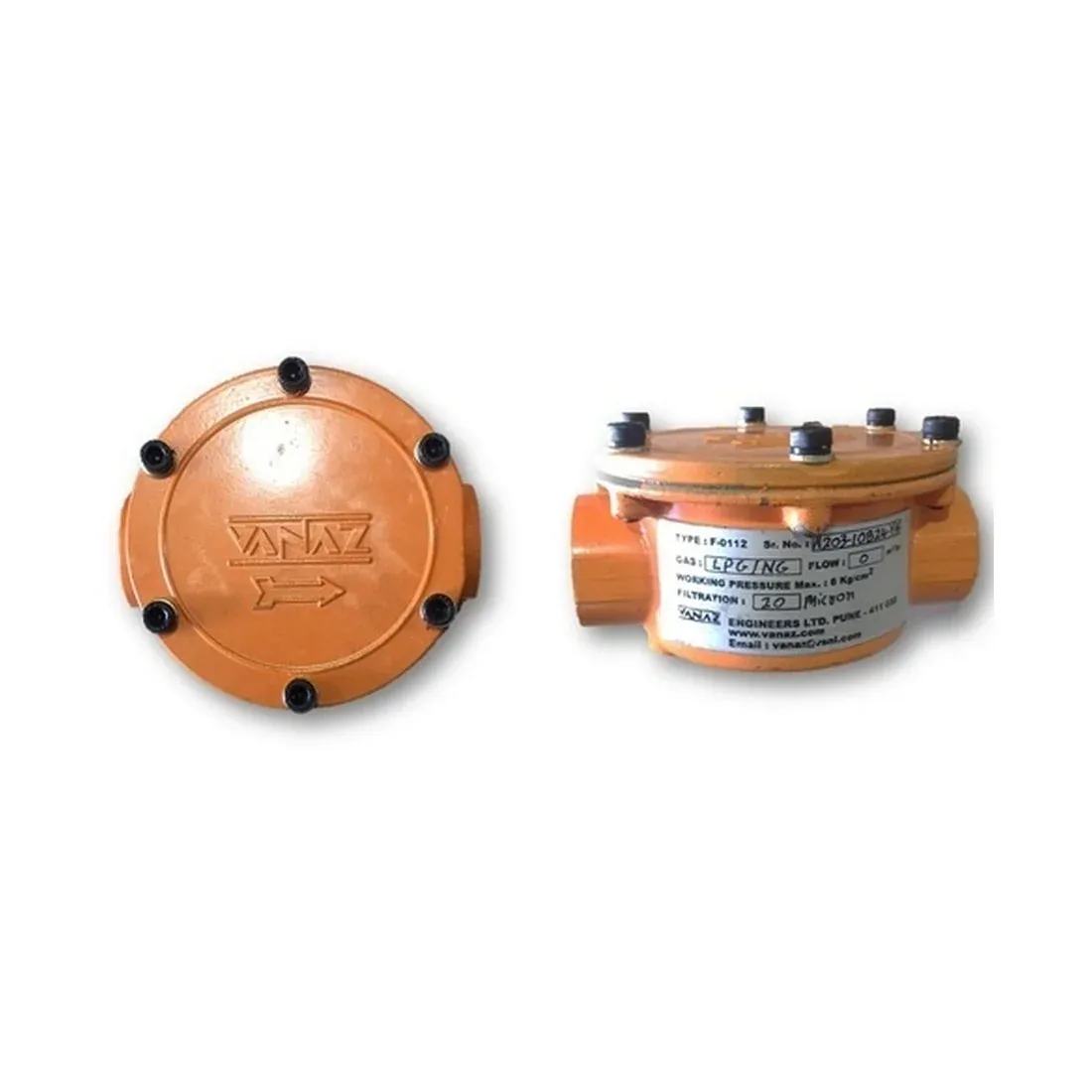

The Vanaz F0112 is an industrial-grade gas pipeline filter/strainer, installed upstream of gas pressure regulators to trap dust, dirt and debris and prevent regulator seat damage. It has a 1″ BSP (internal thread) end connection, rated to a maximum working pressure of 6 Kg/cm² (bar), with a 20-micron filtration rating and a flow capacity of 100 Nm³/hr. The body is Aluminium Die-Cast. Compatible with LPG, Natural Gas and Nitrogen (N₂). Manufactured by Vanaz Engineers Ltd, Pune.
