Servo Motors BPZ:SQN71.664B20

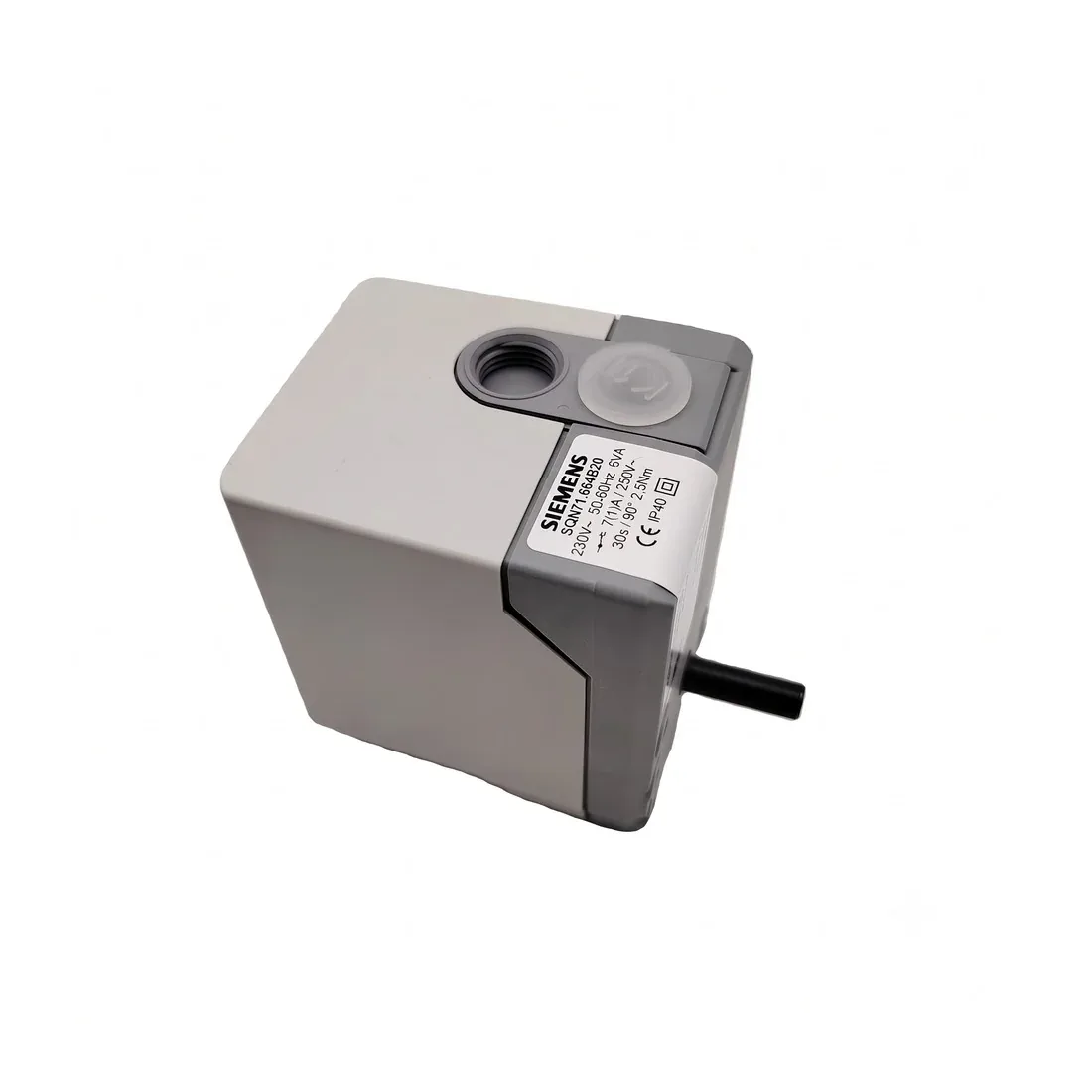

Siemens Servo Motor | Damper Actuator SQN71.664B20

The Siemens SQN71.664B20 is an electromotoric damper actuator — also known as a servo motor — used to position gas/air dampers and fuel-air ratio control linkages on oil and gas burners and heating plant. It completes a 90° stroke in 30 seconds (50Hz), delivers 2.5Nm of nominal torque, and permits a maximum rotation angle of 160°. The unit carries one integral auxiliary switch rated 7(1)A / 250V~, is rated IP40, and runs on a 230V~, 50-60Hz, 6VA supply. Manufactured by Siemens AG, Germany, and supplied by R.K. Instruments & Controls.
