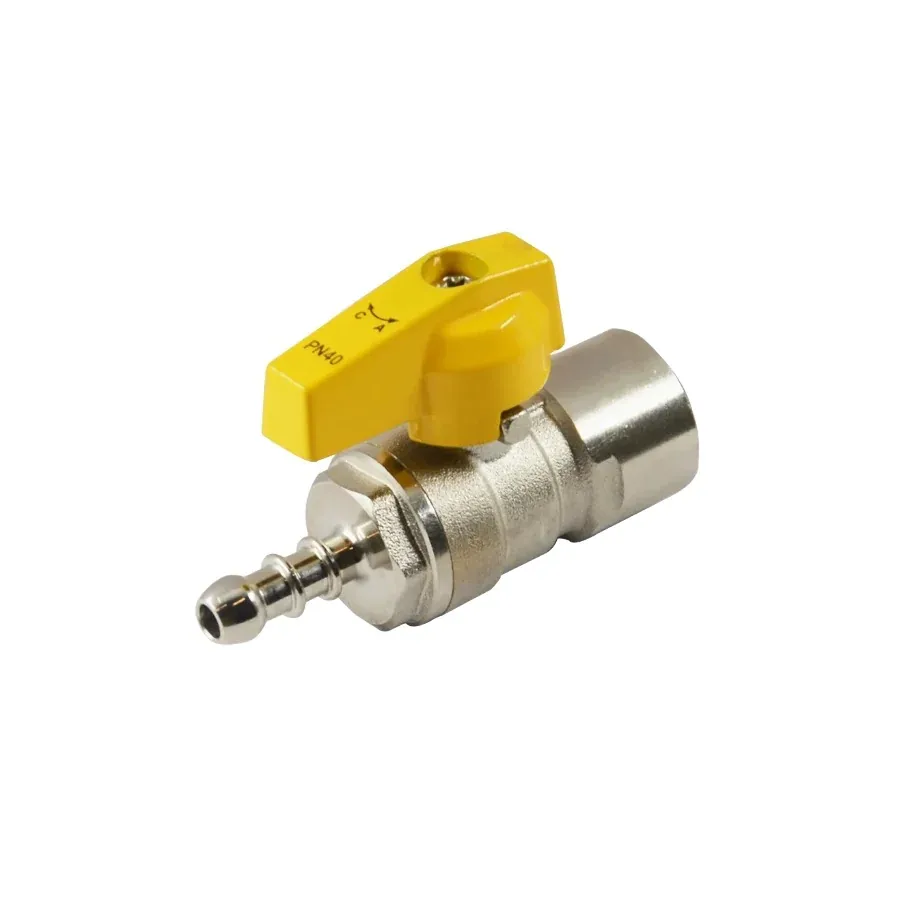

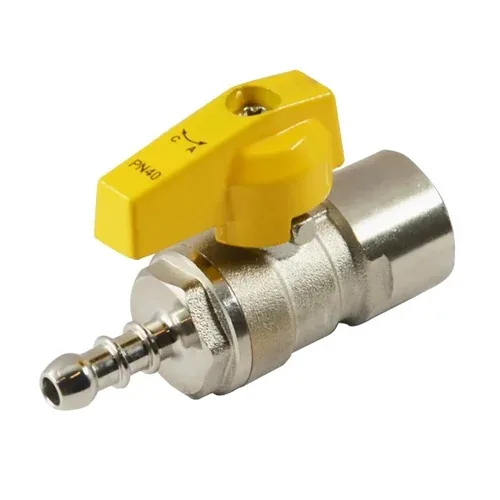

A lever-operated brass ball valve with a hose barb/nozzle outlet, supplied by R.K. Instruments & Controls for manually isolating gas lines and connecting a gas hose to appliances or burners. The nickel-plated brass (CW617N) body houses a chrome-plated brass ball on a PTFE seat, sealed with NBR and Viton® O-rings. Female BSP threaded inlet, hose barb/nozzle outlet, 1/2" (15 mm) size, PN40 rated lever handle. A quick, reliable shut-off point at the hose connection — giving reliable isolation across a wide temperature range. See the materials-of-construction table below for the exact specification.
| Pos. | Description | N. | Material |
|---|---|---|---|
| 1 | Female end adapter | 1 | Nickel-plated brass CW617N |
| 2 | Seat | 2 | PTFE |
| 3 | Ball | 1 | Chrome-plated brass CW617N |
| 4 | Stem | 1 | Brass CW614N |
| 5 | O-ring | 1 | NBR |
| 6 | O-ring | 1 | Viton® |
| 7 | Body | 1 | Nickel-plated brass CW617N |
| 8 | Lever | 1 | Powder-coated aluminium (yellow) |
| 9 | Screw | 1 | Zinc-plated steel C4C |
| 10 | Nozzle / Hose Barb outlet | 1 | Nickel-plated brass CW614N |
