Ignition Spares 4.0mm Female Bullet Lug

Ignition Cable Lug 4.0mm Female Bullet

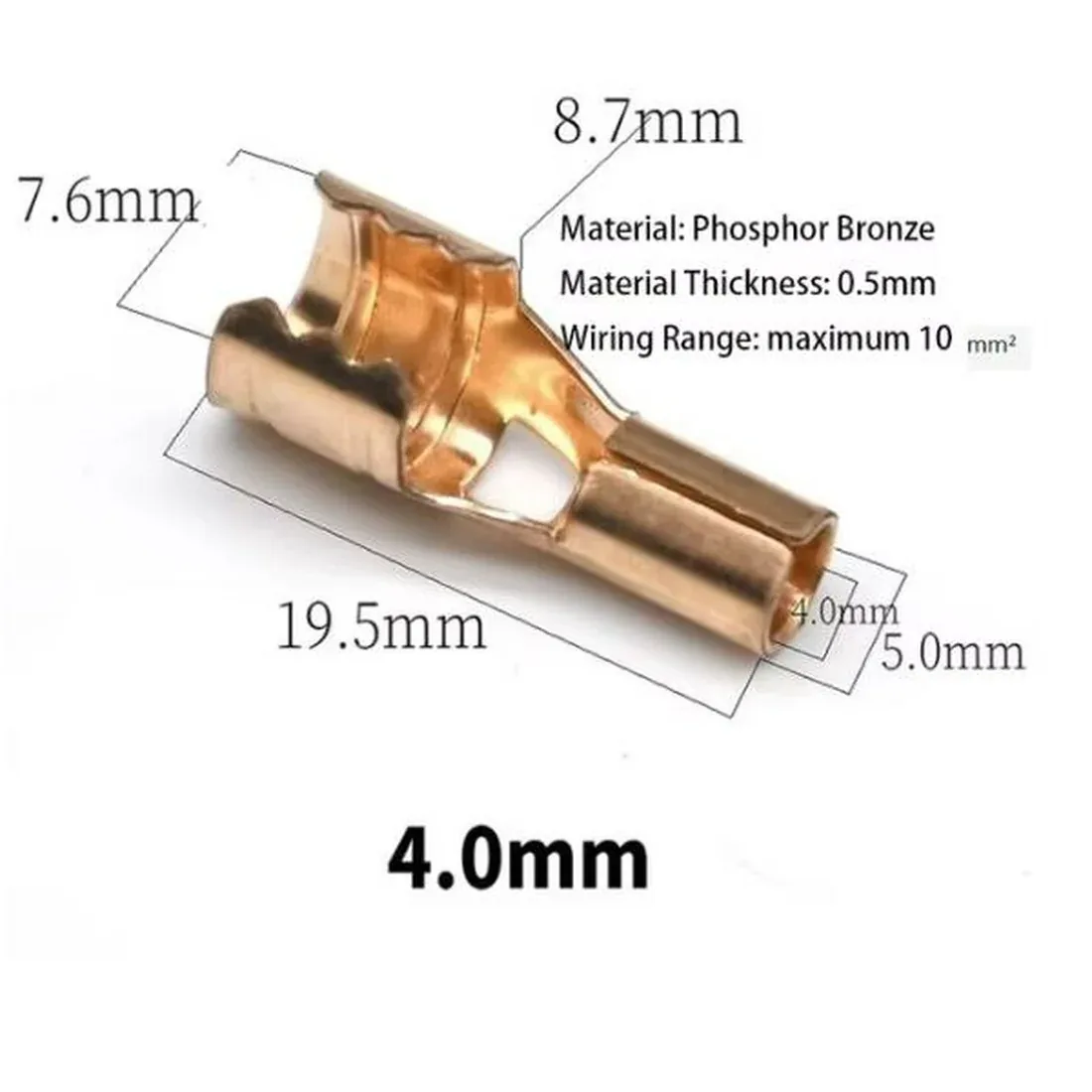

R.K. Instruments & Controls supplies the 4.0mm Female Bullet/Spade Cable Lug, a non-insulated female quick-disconnect crimp terminal engineered for high-voltage ignition circuits such as ignition transformer connectors and ceramic ignition pin terminations. Stamped from 0.5mm phosphor bronze — offering greater elasticity, fatigue resistance and electrical conductivity than standard brass — the terminal measures 19.5mm in overall length with a 7.6mm back-opening / 8.7mm outer-wing mating width, a 4.0mm receptacle inner diameter and 5.0mm outer barrel diameter, and accepts conductors up to 10 mm² in cross-section. A standard ignition-circuit spare used across burner and boiler control panels wherever a 4.0mm high-voltage bullet-style termination is required.
