Gas Flow Meters G4 LPG

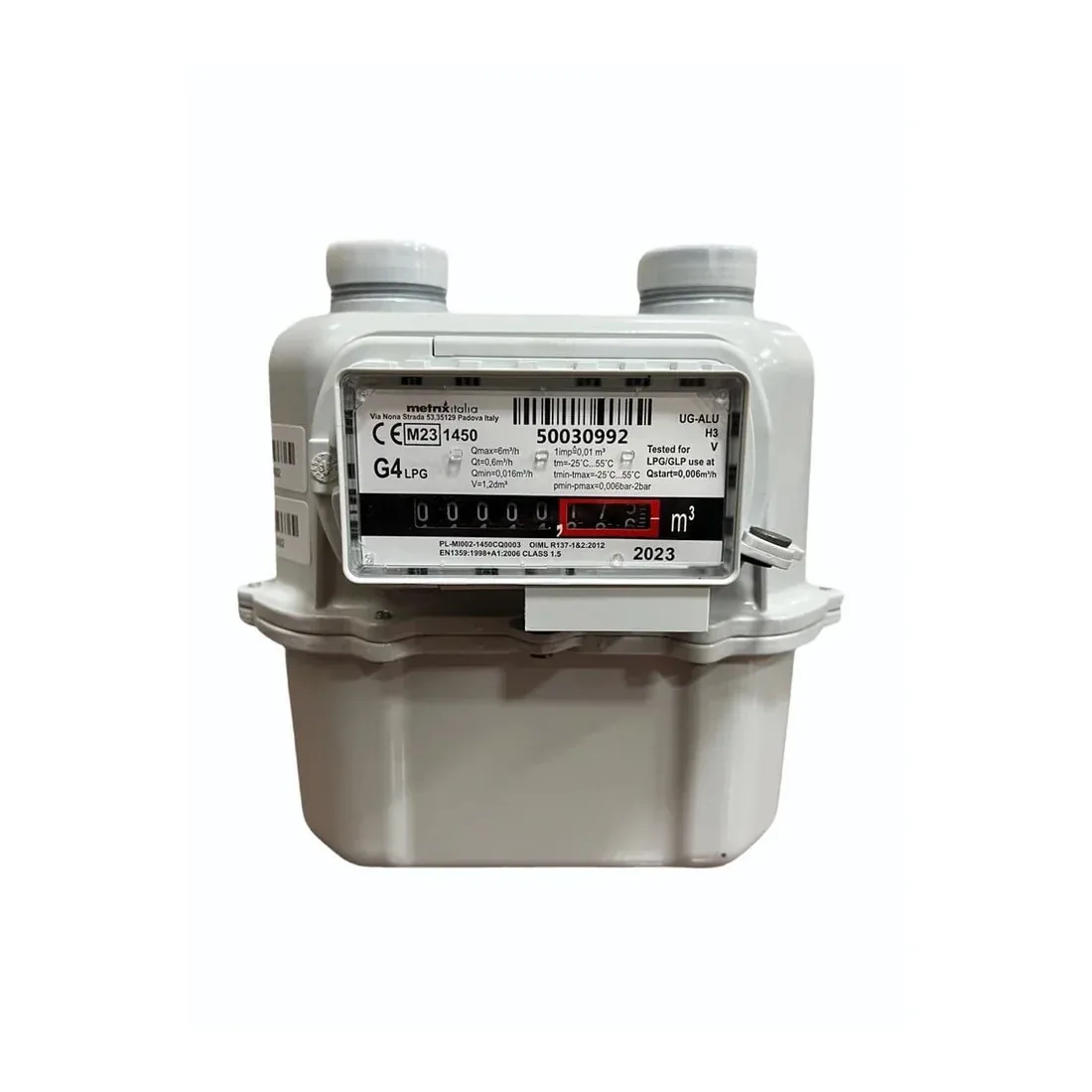

Metrix G4 LPG High Pressure Diaphragm Gas Meter

The Metrix G4 LPG is a G4-size diaphragm gas meter built for LPG/GLP service, rated for a minimum flow of 0.016 m³/h, a transitional flow of 0.6 m³/h and a maximum flow of 6 m³/h, with a cyclic volume of 1.2 litres and a reading resolution of 1 imp = 0.01 m³. It has an aluminium (Type UG-ALU) body, a working pressure range of 0.006 bar to 2 bar and an operating temperature range of -25°C to +55°C, tested for LPG/GLP use at Qstart 0.006 m³/h. Built to EN 1359:1998+A1:2006 Class 1.5 accuracy, CE M23 1450 and OIML R137-1&2:2012 certified. Manufactured by Metrix Italia, Padova, Italy, and supplied by R.K. Instruments & Controls.
