Pressure Regulator Valves RCS040000

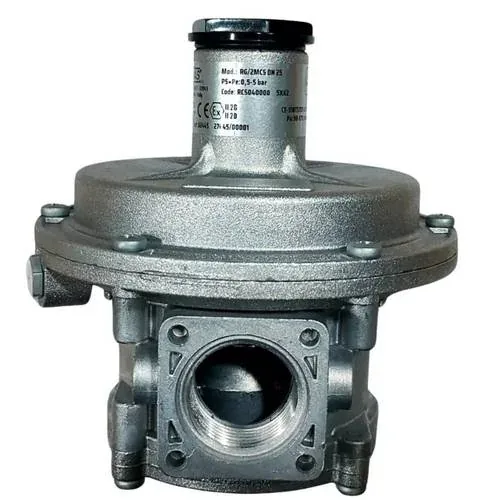

Madas RG/2MCS DN25 Gas Pressure Regulator

The Madas RG/2MCS DN25 is a gas pressure regulator that supplies a preset, constant downstream pressure despite variations in inlet pressure or flow rate, using a compensated obturator for precision even under sudden inlet pressure changes. It includes a relief valve that discharges small gas flows outward if downstream overpressure occurs, but does not include OPSO/UPSO safety shut-off devices. Rated for a 0.5–5 bar inlet pressure range and ATEX zone II 2G / II 2D, it is suited to civil and industrial installations running natural gas, LPG or other non-corrosive dry gases. Manufactured by MADAS s.r.l., Verona, Italy, to EN 88-2 and EN 13611 standards.
