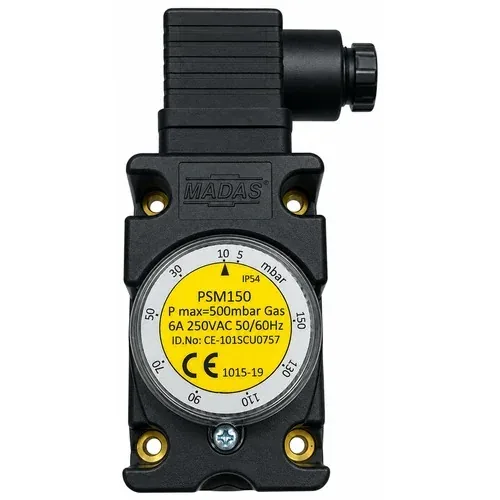

Madas PSM150 Gas Pressure Switch

Name: Madas PSM150 Gas Pressure Switch
Brand: Madas
SKU: PSM150
Availability: InStock

Product Code: PSM150 · Range 5–150 mbar

ModelPSM150

TypeGas Pressure Switch (adjustable minimum pressure switch)

Adjustable Setting Range5 – 150 mbar

Maximum Pressure (Pmax)500 mbar (Gas)

Electrical Rating6A, 250VAC, 50/60Hz

Protection RatingIP54

ID No.CE-101SCU0757

CertificationCE 1015-19

ManufacturerMADAS s.r.l., Italy

Country of OriginItaly

The Madas PSM150 is an adjustable gas pressure switch used to monitor and signal pressure conditions in gas control lines, with a dial-set adjustable range of 5 to 150 mbar and a maximum working pressure of 500 mbar on gas service. It is rated 6A at 250VAC, 50/60Hz, carries an IP54 protection rating, and is CE certified (CE 1015-19). Manufactured by Madas.
