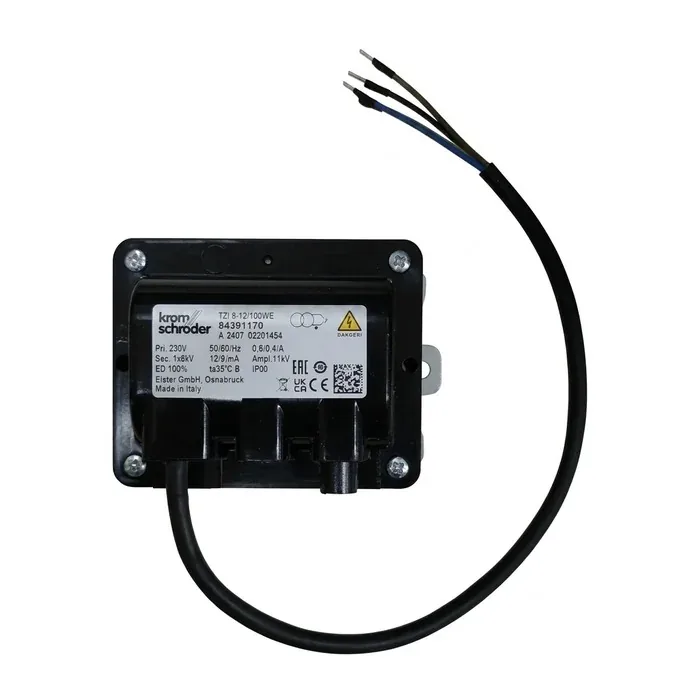

Kromschröder Ignition Transformer TZI 8-12/100WE

Name: Kromschröder Ignition Transformer TZI 8-12/100WE
Brand: Honeywell Kromschröder
SKU: 84391170
Availability: InStock

Product Code: 84391170 · TZI 8-12/100WE

TypeTZI 8-12/100WE

Primary230V, 50(60)Hz, 0.6(0.4)A

Secondary1x8kV, 12(9)mA, Ampl. 11kV

Duty CycleED 100%, ta 35°C/B

ProtectionIP00

ManufacturerElster GmbH, Osnabrück

The Kromschröder TZI 8-12/100WE is a high-voltage ignition transformer that steps up standard 230V mains supply to an 8kV secondary output for firing the spark electrode on gas and oil burners. Rated for continuous 100% duty cycle operation, it is built by Elster GmbH (Osnabrück) under the Kromschröder brand, now part of Honeywell, for reliable ignition in industrial and commercial burner and boiler installations.

Enquire on WhatsApp Contact Us
