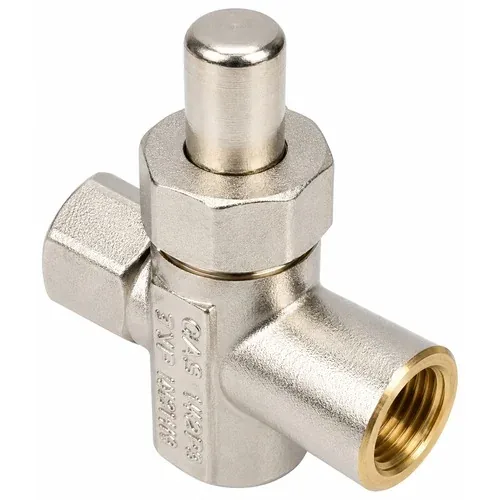

Honeywell Kromschröder DH8TN40 Push Button Valve

Name: Honeywell Kromschröder DH8TN40 Push Button Valve
Brand: Honeywell Kromschröder
SKU: KS03152142
Availability: InStock

Product Code: KS03152142 · ¼" FNPT

ModelDH8TN40

TypePush-to-Test Gauge Isolation Valve

Connection Size¼" x ¼" FNPT (Internal Thread NPT)

Body MaterialBrass, nickel plated

Maximum Inlet Pressure (pu)5 bar (70 psig)

MediaGas and air

Order No.KS03152142

ManufacturerHoneywell Kromschröder

The Honeywell Kromschröder DH8TN40 is a manual push-to-test gauge isolation valve, brass body with nickel-plated finish, sized ¼" x ¼" FNPT. It protects a pressure gauge against pressure surges by isolating it from the line; pressing the button connects the gauge for a reading, and releasing it shuts off flow to the gauge while automatically venting residual pressure. Rated to a maximum inlet pressure of 5 bar (70 psig) for gas and air. Manufactured by Honeywell Kromschröder.
