Honeywell Eclipse Spark Ignition Electrode 23045

Name: Honeywell Eclipse Spark Ignition Electrode 23045
Brand: Honeywell Eclipse
SKU: 23045
Availability: InStock

Product Code: 23045 / EC23045

Part Number23045 / EC23045

Product TypeBurner Spark Electrode / Ignition Rod (Self-Grounding, Extended Ceramic)

Electrode Base Depth101 mm (3.98 in.)

Thread Type / SizeM14 (14mm x 1.25mm)

Electrode Gap Distance1.5 mm

Operating Temperature-100°C to 1350°C

Burner CompatibilityEclipse Thermjet (TJ) & RatioAir (RA) burners, FurnNOx systems

Grounding TypeSelf-Grounding (M14 connection)

Primary ApplicationIndustrial boilers, commercial furnaces & high-temperature process heaters

Electrode & Wiring MaterialKanthal A1 (FeCrAl resistance wire), alumina ceramic body

ManufacturerHoneywell Eclipse

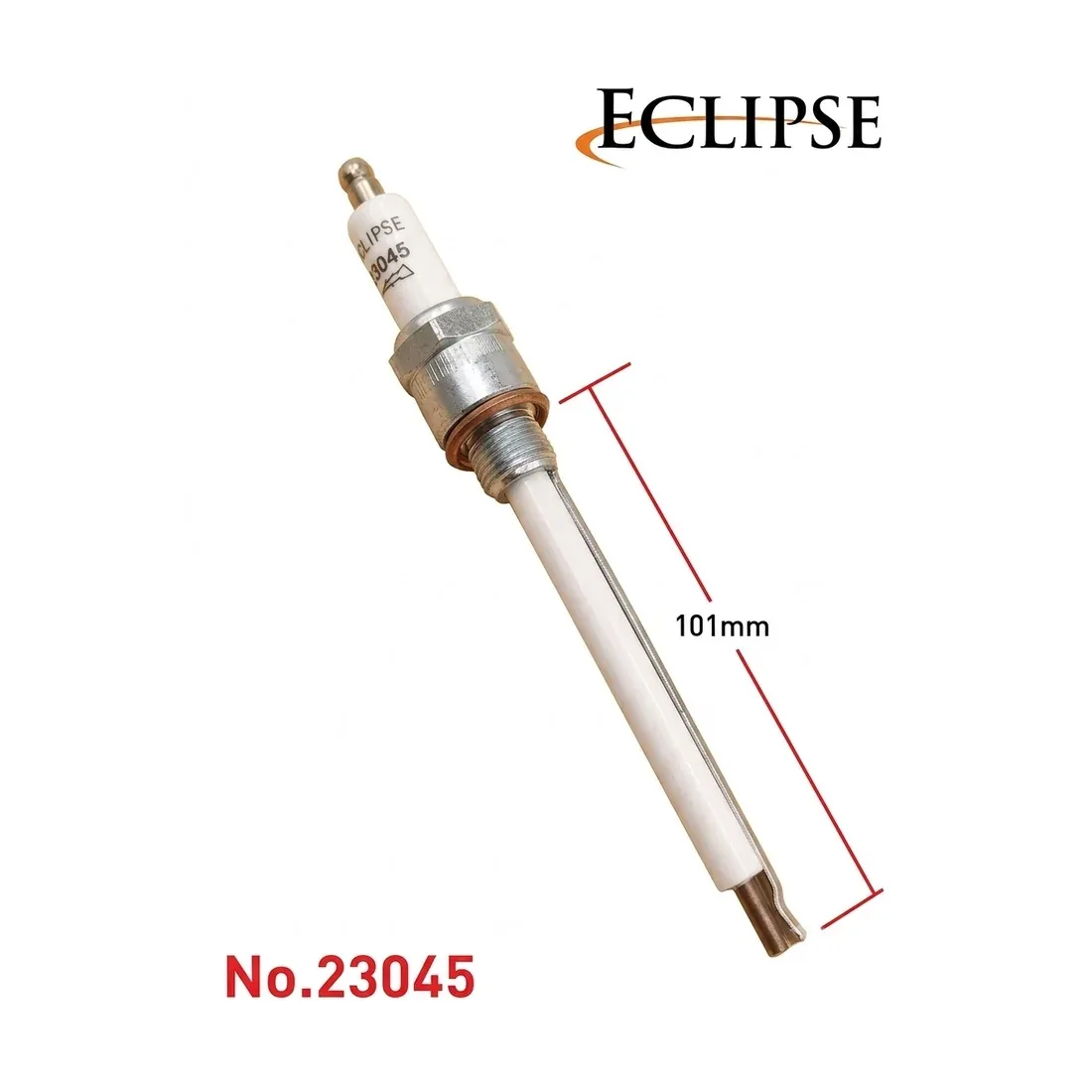

The Honeywell Eclipse 23045 is a self-grounding burner spark ignition electrode with an extended ceramic insulator body, a 101mm base depth (3.98 in.) and M14 x 1.25mm threaded mounting. It features a 1.5mm fixed spark gap and is rated for continuous operation from -100 degC to 1350 degC. It is used on Eclipse Thermjet (TJ) and RatioAir (RA) burners and FurnNOx systems, and is suited to industrial boilers, commercial furnaces and high-temperature process heaters. Manufactured by Honeywell Eclipse (Eclipse Combustion).
