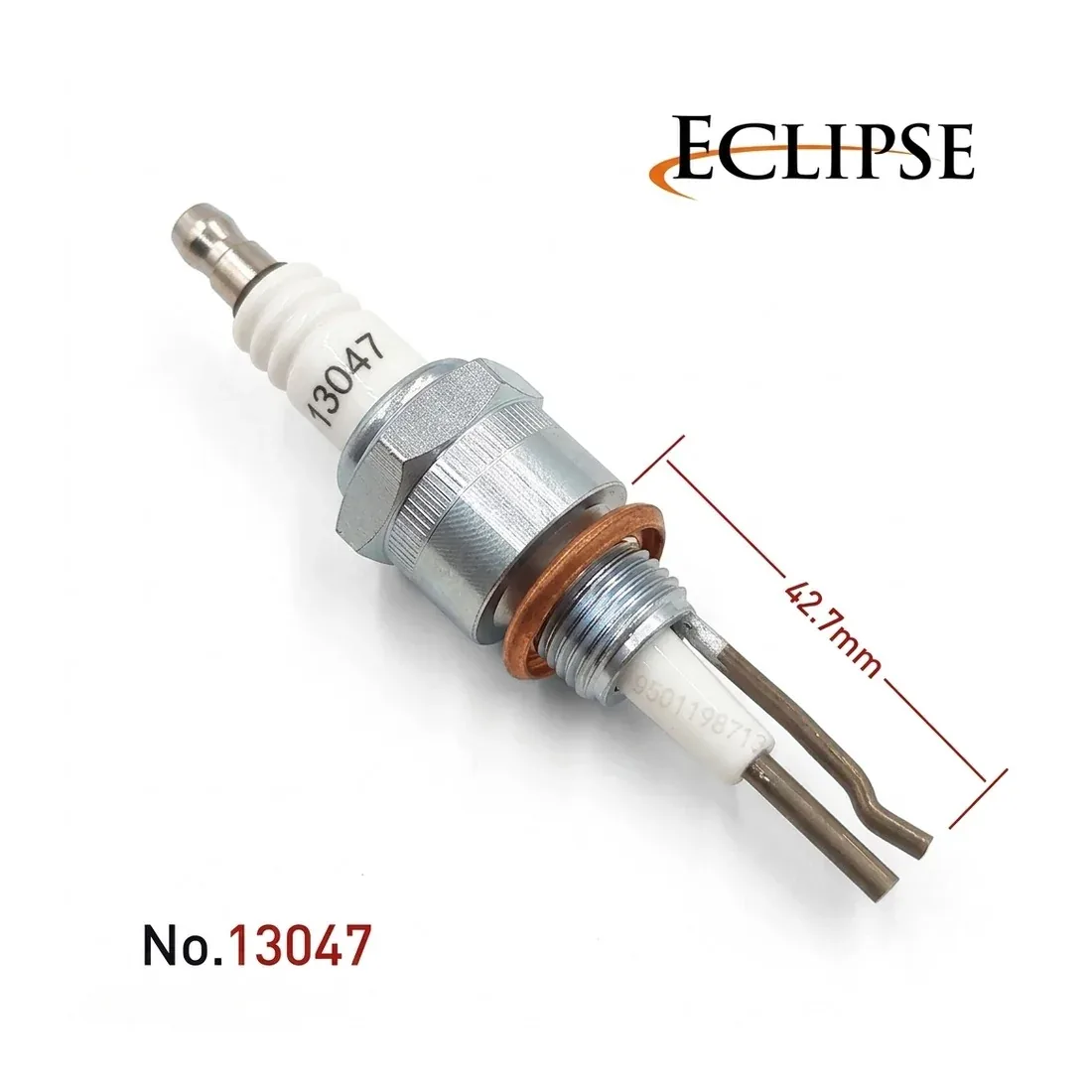

Honeywell Eclipse Spark Ignition Electrode 13047

Name: Honeywell Eclipse Spark Ignition Electrode 13047
Brand: Honeywell Eclipse
SKU: 13047
Availability: InStock

Product Code: 13047

Part Number13047

Product TypeBurner Spark Ignition Electrode (Self-Grounding)

Electrode Base Depth42.7 mm

Thread Type / SizeM14 (14mm x 1.25mm)

Ignition Voltage40 kV minimum

Operating Temperature-100°C to 1350°C

Hex Nut Dimension13/16 in.

Burner CompatibilityEclipse AH (Airheat) Version 1 burners (AH0050–AH0400 series), with or without flame-rod detection

Electrode & Wiring MaterialKanthal A1 (FeCrAl resistance wire), alumina ceramic body

ManufacturerHoneywell Eclipse

The Honeywell Eclipse 13047 is a self-grounding burner spark ignition electrode with a 42.7mm base depth and M14 x 1.25mm threaded mounting, with a 13/16 in. hex nut for installation. Built with a Kanthal A1 electrode and an alumina ceramic body, it is rated for continuous operation from -100 degC to 1350 degC with a 40kV minimum ignition voltage. It is used on Eclipse AH (Airheat) Version 1 burners (AH0050-AH0400 series), with or without flame-rod detection. Manufactured by Honeywell Eclipse.
