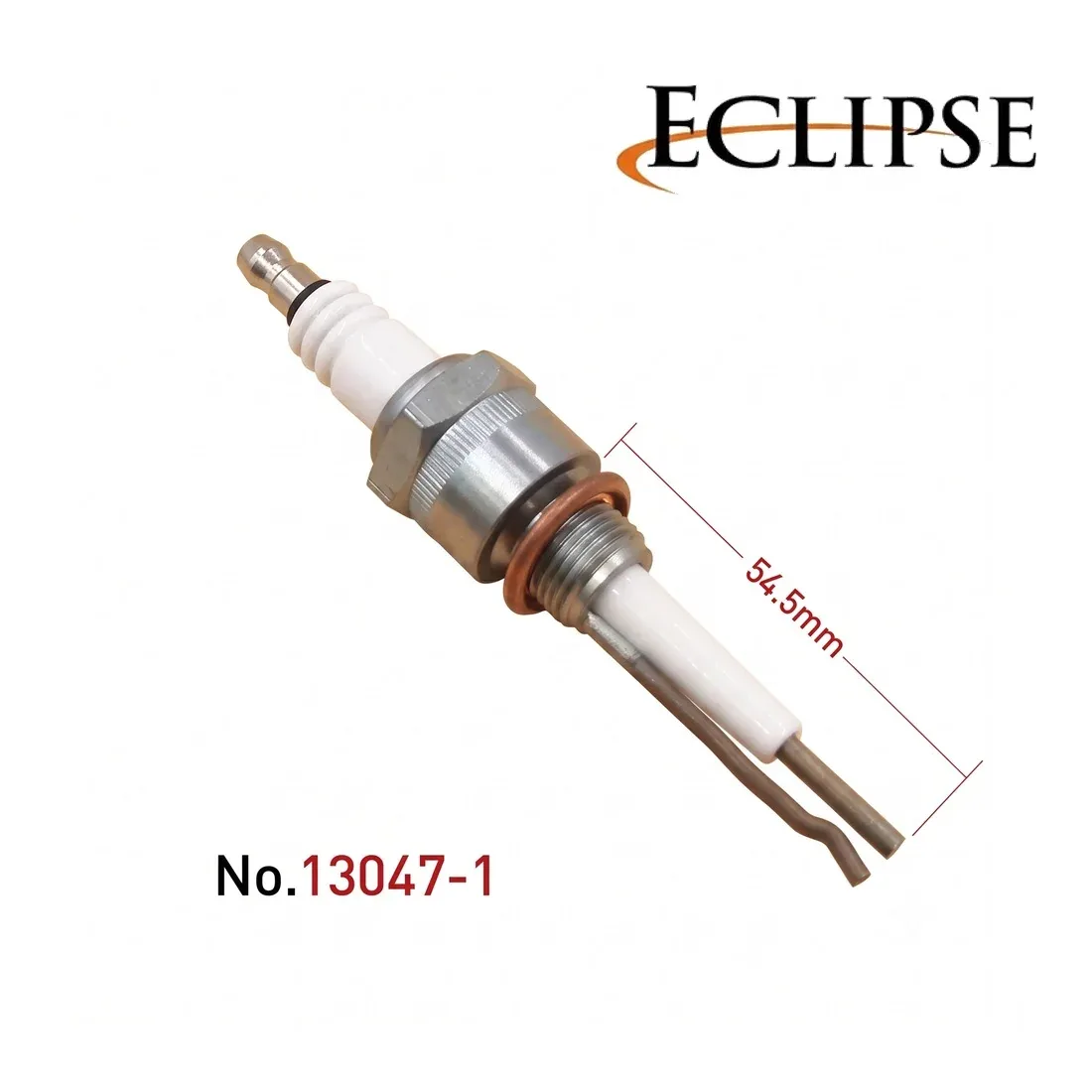

Honeywell Eclipse Spark Ignition Electrode 13047-1

Name: Honeywell Eclipse Spark Ignition Electrode 13047-1
Brand: Honeywell Eclipse
SKU: 13047-1
Availability: InStock

Product Code: 13047-1 / EC13047-1

Part Number13047-1 / EC13047-1

Product TypeBurner Spark Ignition Electrode (Self-Grounding)

Electrode Base Depth54.5 mm (2.17 in.)

Thread Type / SizeM14 (14mm x 1.25mm)

Ignition Voltage40 kV minimum

Operating Temperature-100°C to 1350°C

Burner CompatibilityEclipse AH (Airheat) Version 2 burners, Gas Burner Compact, with or without flame-rod detection

Electrode & Wiring MaterialKanthal A1 (FeCrAl resistance wire), alumina ceramic body

ManufacturerHoneywell Eclipse

The Honeywell Eclipse 13047-1 is a self-grounding burner spark ignition electrode with a 54.5mm base depth (2.17 in.) and M14 x 1.25mm threaded mounting. Built with a Kanthal A1 electrode and an alumina ceramic body, it is rated for continuous operation from -100 degC to 1350 degC with a 40kV minimum ignition voltage. It is used on Eclipse AH (Airheat) Version 2 burners and Gas Burner Compact units, with or without flame-rod detection. Manufactured by Honeywell Eclipse.

Enquire on WhatsApp Contact Us
