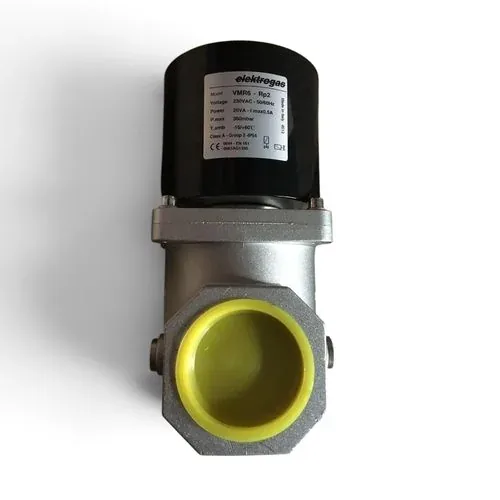

Elektrogas VMR6 Gas Solenoid Valve (Rp2")

Name: Elektrogas VMR6 Gas Solenoid Valve (Rp2")
Brand: Elektrogas
SKU: VMR6
Availability: InStock

Product Code: VMR6 · 230VAC, 50/60Hz, Rp2"

ModelVMR6, Rp2"

Connection Size2" (Rp2)

Supply Voltage230 VAC, 50/60 Hz

Power20 VA (I max 0.5A)

Max Pressure360 mbar

Ambient Temp.-15°C to +60°C

CertificationEN 161 Class A, Group 2, IP54

MarkingCE 0694

OriginMade in Italy

The Elektrogas VMR6 (Rp2") is a normally-closed automatic-reset gas solenoid valve for shut-off duty on gas lines, with a 2" connection size, rated 230VAC 50/60Hz with a 20VA coil (0.5A max current) and a maximum working pressure of 360 mbar. Certified to EN 161 Class A, Group 2, IP54, and CE marked (0694), it is rated for an ambient temperature range of -15°C to +60°C. Manufactured by Elektrogas, Italy, for burner, boiler and gas-train safety shut-off applications on 2" (Rp2) BSP connections.
