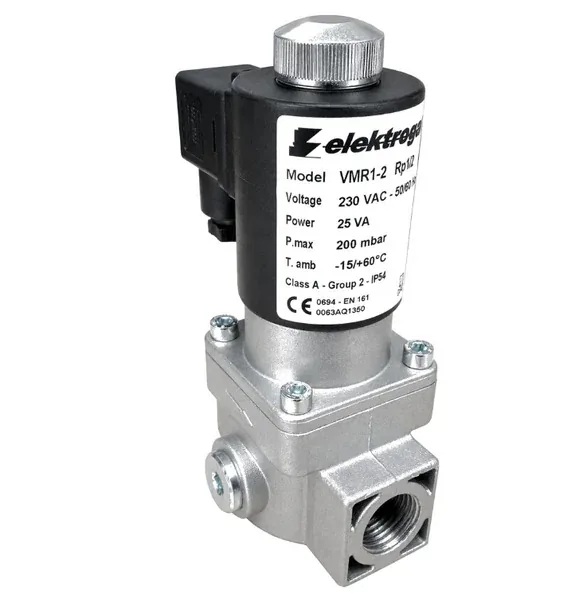

Elektrogas VMR1-2 Gas Solenoid Valve (Rp1/2)

Name: Elektrogas VMR1-2 Gas Solenoid Valve (Rp1/2)
Brand: Elektrogas
SKU: VMR1-2
Availability: InStock

Product Code: VMR1-2 · 230VAC, 50/60Hz, Rp1/2

ModelVMR1-2, Rp1/2

Connection Size1/2" (Rp1/2)

Supply Voltage230 VAC, 50/60 Hz

Power25 VA

Max Pressure200 mbar

Ambient Temp.-15°C to +60°C

CertificationEN 161 Class A, Group 2, IP54

MarkingCE 0694

The Elektrogas VMR1-2 (Rp1/2) is a normally-closed automatic-reset gas solenoid valve for shut-off duty on gas lines, with a 1/2" connection size, rated 230VAC 50/60Hz with a 25VA coil and a maximum working pressure of 200 mbar. Certified to EN 161 Class A, Group 2, IP54, and CE marked (0694), it is rated for an ambient temperature range of -15°C to +60°C. Manufactured by Elektrogas, Italy, for burner, boiler and gas-train safety shut-off applications on 1/2" (Rp1/2) BSP connections.
