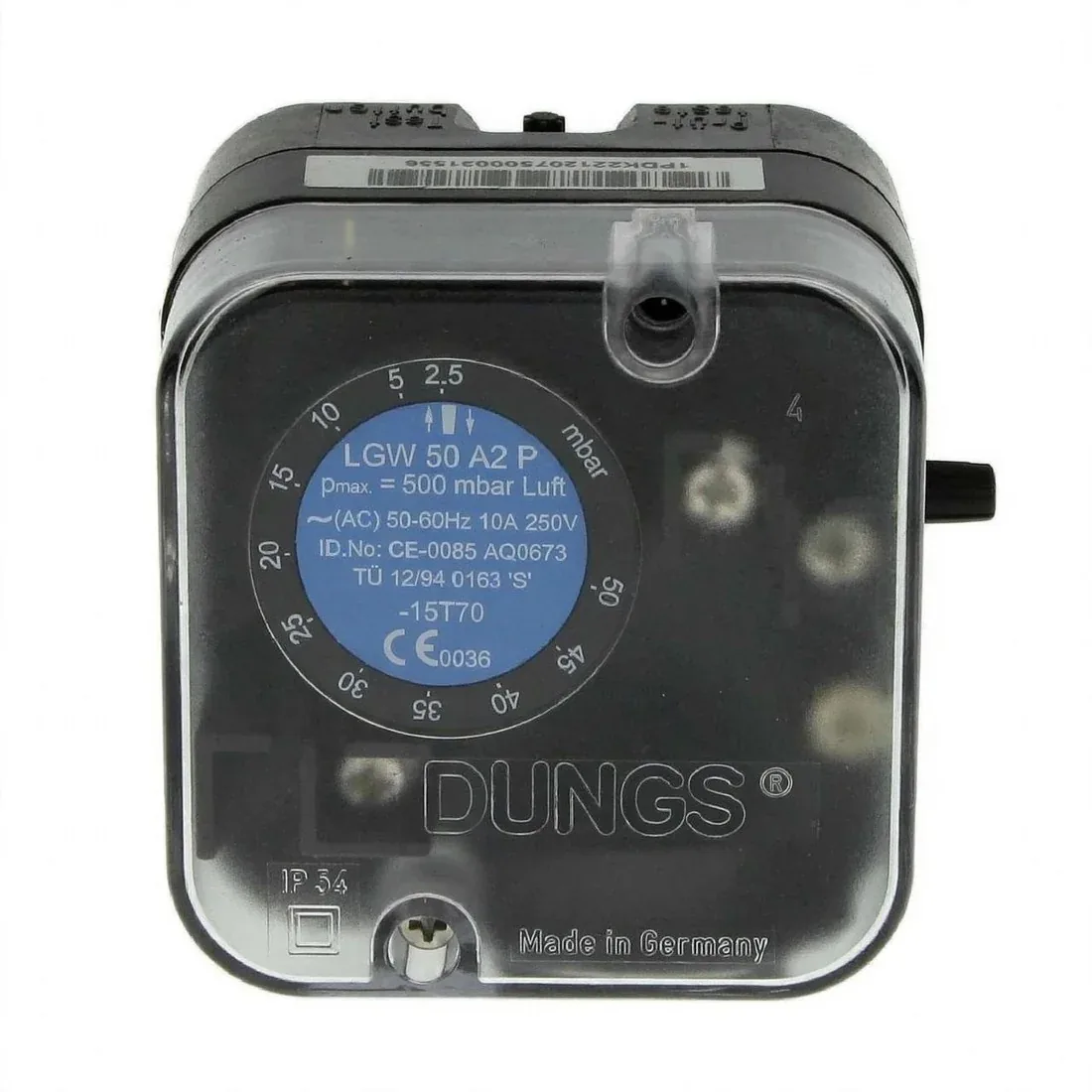

Dungs LGW 50 A2 P Air Pressure Switch

Name: Dungs LGW 50 A2 P Air Pressure Switch
Brand: Dungs
SKU: LGW 50 A2 P
Availability: InStock

Product Code: LGW 50 A2 P · Range 2.5 – 50 mbar

ModelLGW 50 A2 P

TypeAir (Low Pressure) Pressure Switch (adjustable)

Adjustable Setting Range2.5 – 50 mbar

Maximum Pressure (Pmax)500 mbar (Air)

Electrical Rating10A, 250VAC, 50/60Hz

Electrical ConnectionPlug connector (P variant)

Protection RatingIP54

ID No.CE-0085 AQ0673, TÜ 12/94 0163 'S' -15T70

CertificationCE 0036

ManufacturerDungs GmbH & Co. KG, Germany

Country of OriginGermany

The Dungs LGW 50 A2 P is a compact air pressure switch used to monitor and signal pressure conditions in air control lines, with a dial-set adjustable range of 2.5 to 50 mbar and a maximum working pressure of 500 mbar (Air). It is rated 10A, 250VAC, 50/60Hz, carries an IP54 protection rating, and is CE certified (CE 0036). Manufactured by Dungs, Germany.
