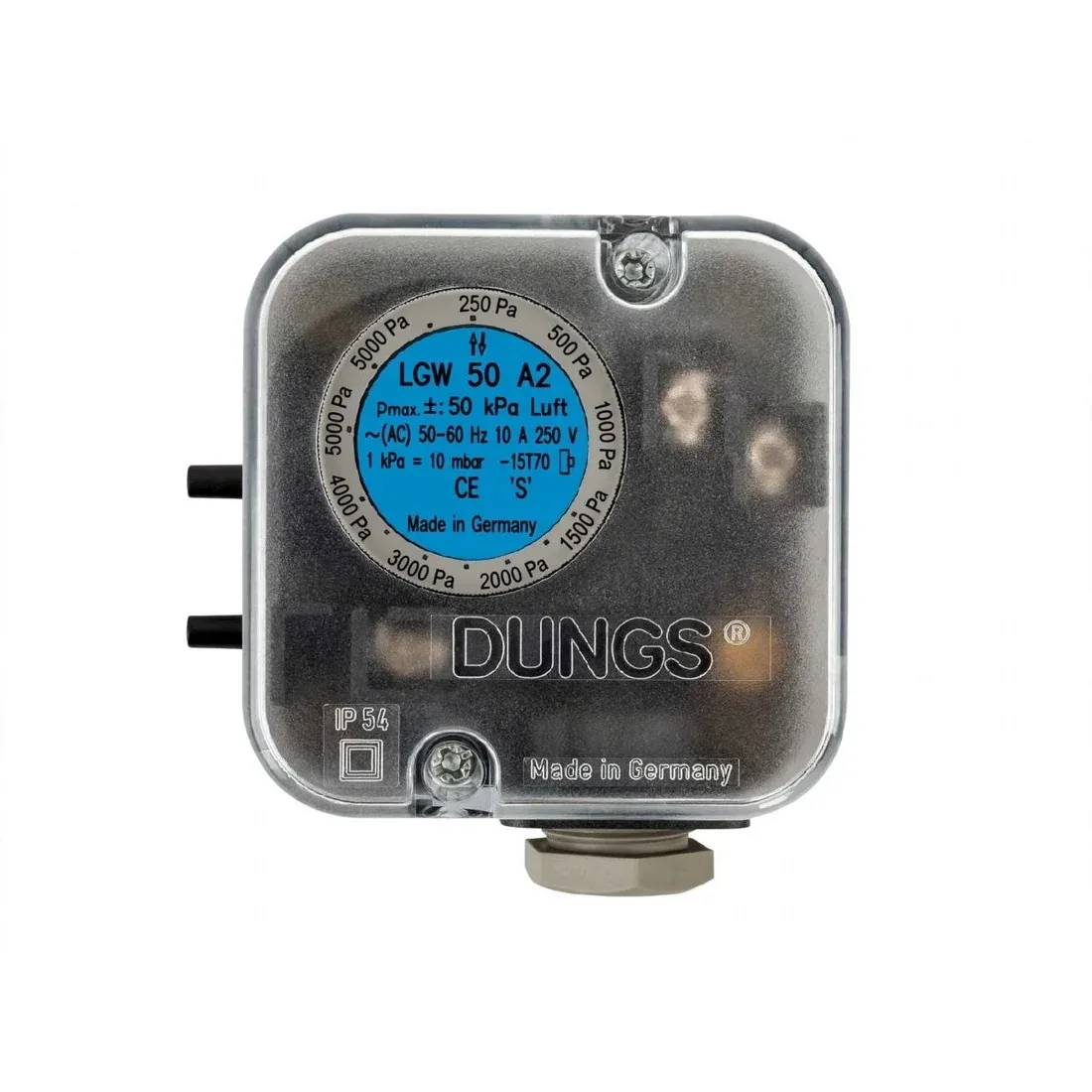

Dungs LGW 50 A2 (Pa-scale) Air Pressure Switch

Name: Dungs LGW 50 A2 (Pa-scale) Air Pressure Switch
Brand: Dungs
SKU: LGW 50 A2 (Pa-scale)
Availability: InStock

Product Code: LGW 50 A2 (Pa-scale) · Range 250 – 5000 Pa (= 2.5 – 50 mbar)

ModelLGW 50 A2 (Pa-scale)

TypeAir (Low Pressure) Pressure Switch (adjustable)

Adjustable Setting Range250 – 5000 Pa (= 2.5 – 50 mbar)

Maximum Pressure (Pmax)±50 kPa (Air)

Electrical Rating10A, 250VAC, 50/60Hz

Electrical ConnectionScrew terminal, cable gland

Protection RatingIP54

ID No.CE 0036 'S' (Pa-calibrated dial variant)

CertificationCE 0036

ManufacturerDungs GmbH & Co. KG, Germany

Country of OriginGermany

The Dungs LGW 50 A2 (Pa-scale) is a compact air pressure switch used to monitor and signal pressure conditions in air control lines, with a dial-set adjustable range of 250 to 5000 Pa (= 2.5 to 50 mbar) and a maximum working pressure of ±50 kPa (Air). It is rated 10A, 250VAC, 50/60Hz, carries an IP54 protection rating, and is CE certified (CE 0036). Manufactured by Dungs, Germany.
