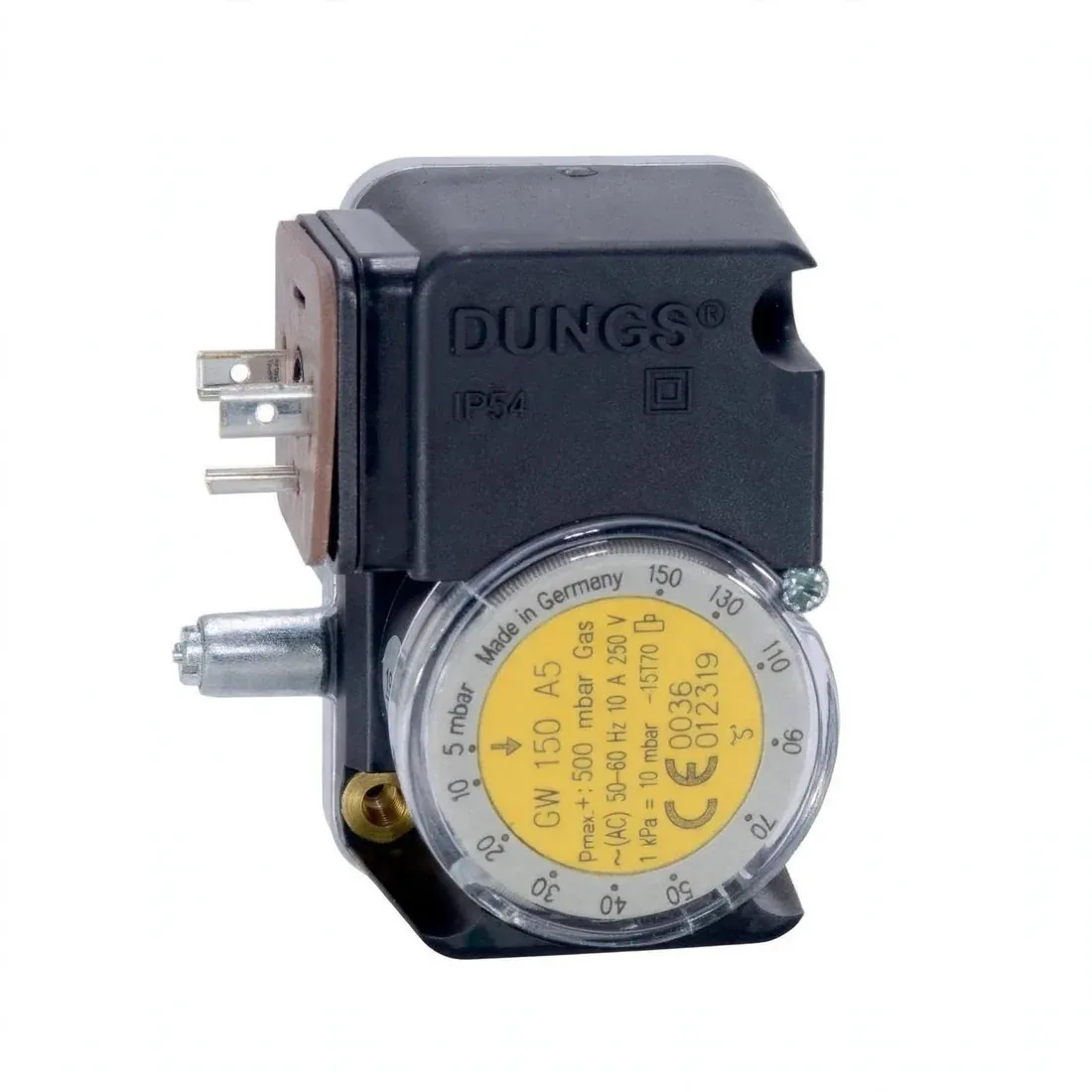

Dungs GW 150 A5 Gas Pressure Switch

Name: Dungs GW 150 A5 Gas Pressure Switch
Brand: Dungs
SKU: GW 150 A5
Availability: InStock

Product Code: GW 150 A5 · Range 5 – 150 mbar

ModelGW 150 A5

TypeGas Pressure Switch (adjustable)

Adjustable Setting Range5 – 150 mbar

Maximum Pressure (Pmax)500 mbar (Gas)

Electrical Rating10A, 250VAC, 50/60Hz

Electrical ConnectionBlade (spade) pin terminals

Protection RatingIP54

ID No.CE-0036 012319 -15T70 'S'

CertificationCE 0036

ManufacturerDungs GmbH & Co. KG, Germany

Country of OriginGermany

The Dungs GW 150 A5 is a compact gas pressure switch used to monitor and signal pressure conditions in gas control lines, with a dial-set adjustable range of 5 to 150 mbar and a maximum working pressure of 500 mbar (Gas). It is rated 10A, 250VAC, 50/60Hz, carries an IP54 protection rating, and is CE certified (CE 0036). Manufactured by Dungs, Germany.
