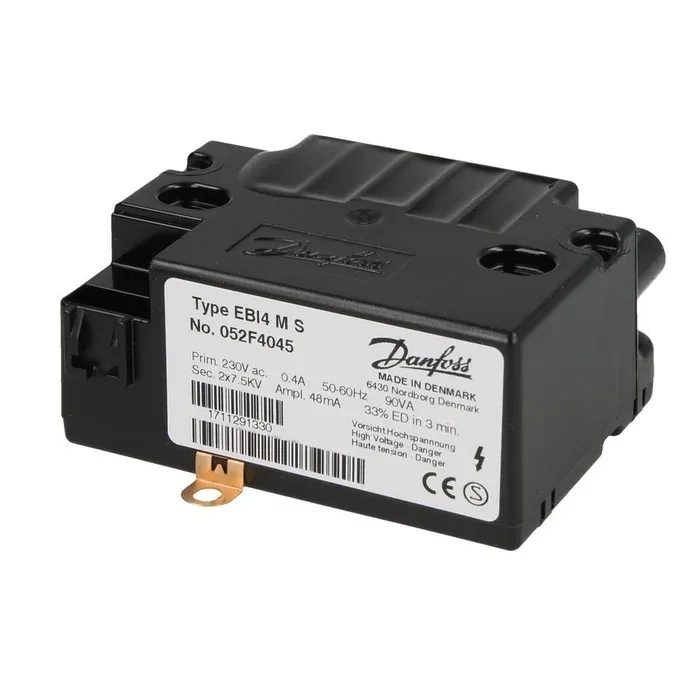

Danfoss EBI4 M S Ignition Transformer

Name: Danfoss EBI4 M S Ignition Transformer
Brand: Danfoss
SKU: 052F4045
Availability: InStock

Product Code: 052F4045 · 230V, 50-60Hz, 2-Pole

TypeEBI4 M S

Product Code052F4045

SeriesEBI4 (Intermittent Duty)

Configuration2-Pole

Primary230V AC, 0.4A, 50-60Hz, 90VA

Secondary2 x 7.5kV, 48mA (Ampl.)

Duty Cycle33% ED in 3 min

ApplicationGas burner ignition (intermittent-cycle duty)

ComplianceCE Marking

A 2-pole ignition transformer from the Danfoss EBI4 series, rated for intermittent-duty burner ignition (33% ED in 3 minutes). It steps up a 230V, 50-60Hz, 90VA primary supply to two 7.5kV secondary outputs at 48mA (Ampl.), a higher-output variant of the EBI4 series for applications needing a stronger spark than the standard EBI4 1P/CM models. Manufactured by Danfoss in Nordborg, Denmark.
