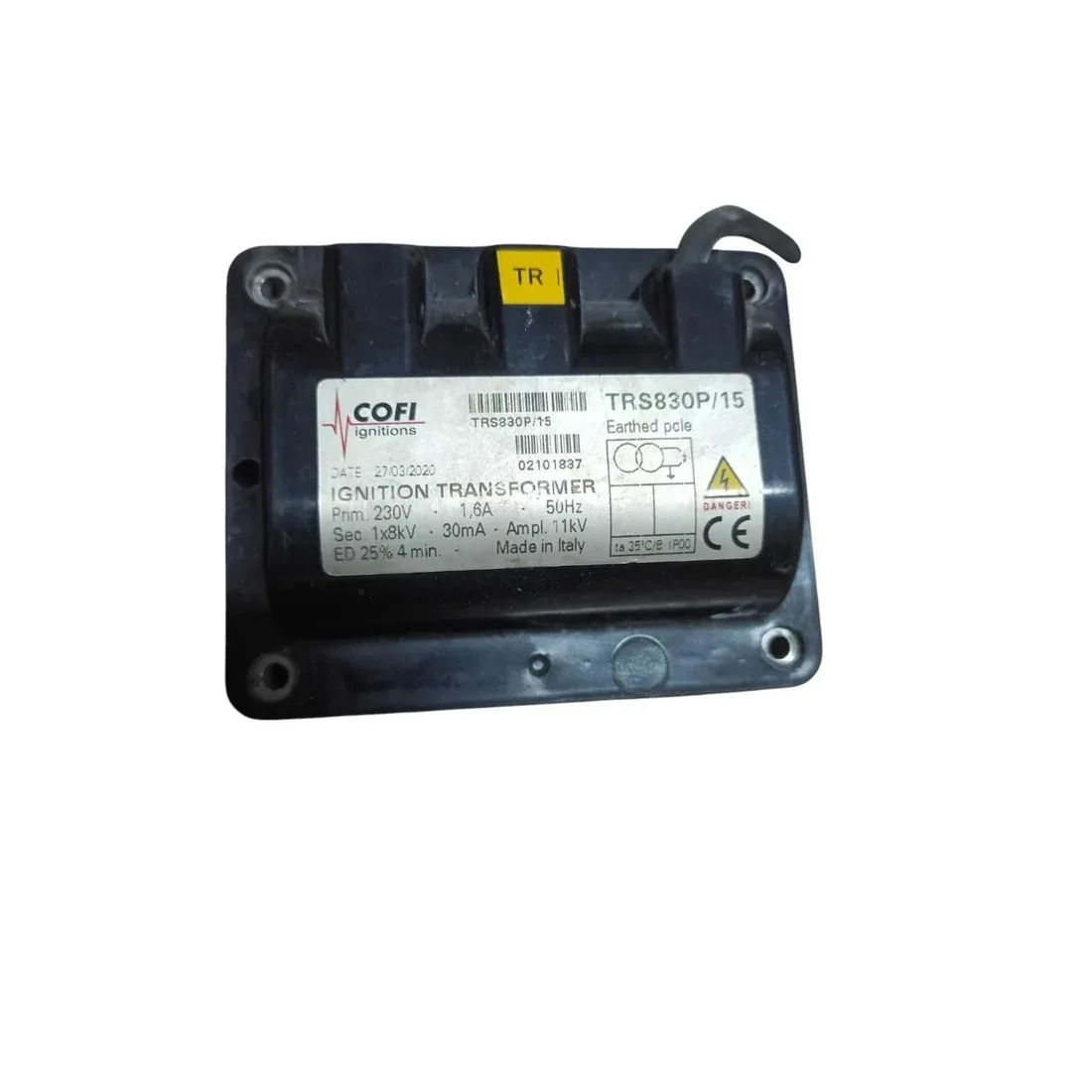

Cofi Ignition Transformer TRS830P/15

Name: Cofi Ignition Transformer TRS830P/15
Brand: Cofi
SKU: TRS830P/15
Availability: InStock

Product Code: TRS830P/15 · Earthed Pole

TypeTRS830P/15

Product Code02101837

ConfigurationEarthed Pole

Primary230V, 1.6A, 50Hz

Secondary1 x 8kV, 30mA, Ampl. 11kV

Duty CycleED 25% in 4 Min.

Ambient/Protectionta 35°C/B, IP00

MarkingCE

OriginMade in Italy

ManufacturerCofi srl

The Cofi TRS830P/15 is an earthed-pole ignition transformer that steps up a 230V, 50Hz primary supply (1.6A) to a single 8kV, 30mA secondary output with an amplitude of 11kV, for firing the spark electrode on gas and oil burners. Rated for an intermittent duty cycle of 25% ED within a 4-minute cycle, at an ambient temperature of 35°C/B, IP00. Manufactured by Cofi srl, Italy, it is CE marked and suited to industrial burner and boiler ignition applications.
