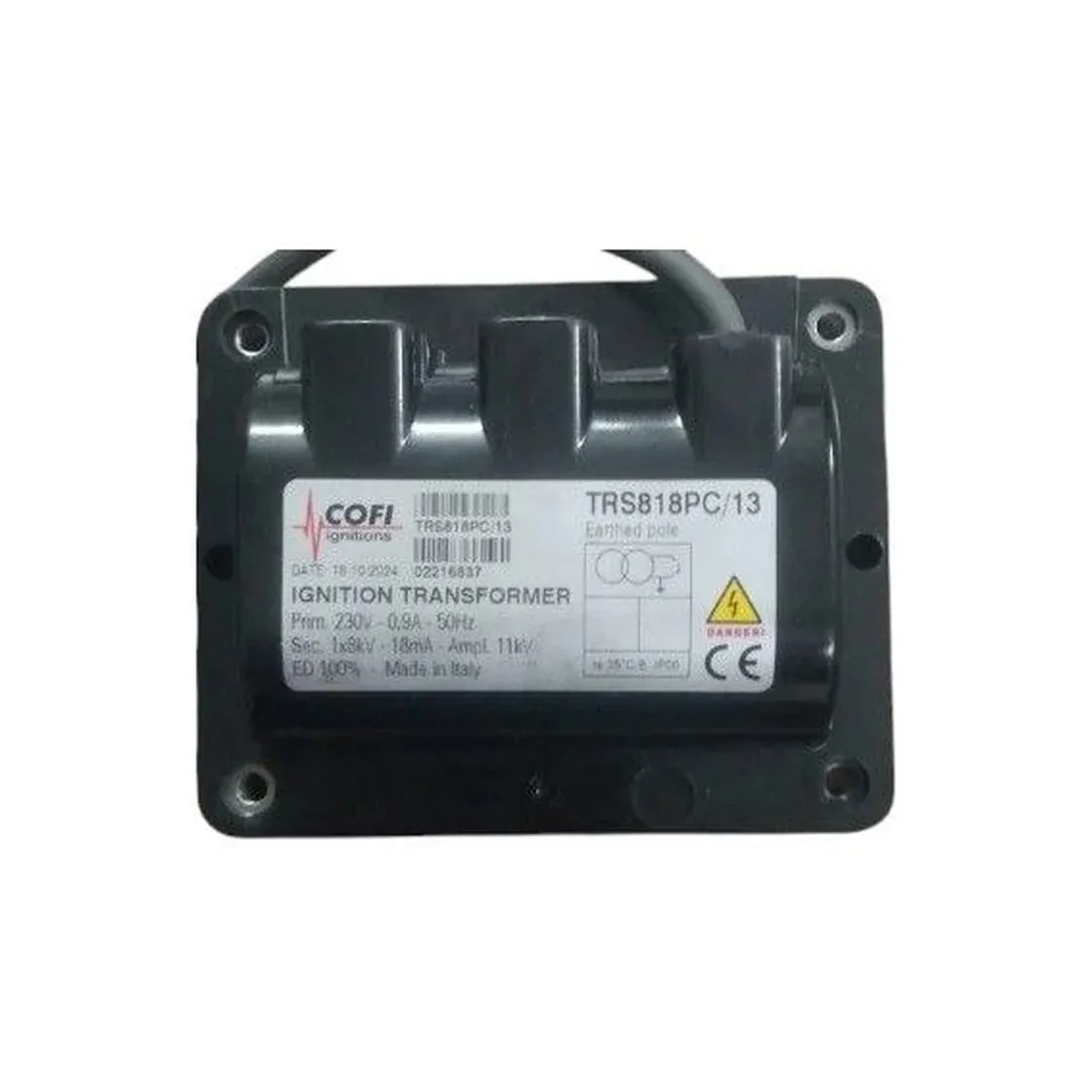

Cofi Ignition Transformer TRS818PC/13

Name: Cofi Ignition Transformer TRS818PC/13
Brand: Cofi
SKU: TRS818PC/13
Availability: InStock

Product Code: TRS818PC/13 · Earthed Pole

TypeTRS818PC/13

Product Code02216937

ConfigurationEarthed Pole

Primary230V, 0.9A, 50Hz

Secondary1 x 8kV, 18mA, Ampl. 11kV

Duty CycleED 100%

Ambient/Protectionta 35°C-B, IP00

MarkingCE

OriginMade in Italy

ManufacturerCofi srl

The Cofi TRS818PC/13 is an earthed-pole ignition transformer that steps up a 230V, 50Hz primary supply (0.9A) to a single 8kV, 18mA secondary output with an amplitude of 11kV, for firing the spark electrode on gas and oil burners. Rated for continuous 100% duty (ED 100%) at an ambient temperature of 35°C-B, IP00. Manufactured by Cofi srl, Italy, it is CE marked and suited to industrial burner and boiler ignition applications.
