Cofi Ignition Transformer TRK1-20CVD

Name: Cofi Ignition Transformer TRK1-20CVD
Brand: Cofi
SKU: TRK1-20CVD
Availability: InStock

Product Code: TRK1-20CVD · Compact block

TypeTRK1-20CVD

Product Code240-401-021831-272

ConfigurationEarthed Center

Primary220-240V, 0.1A, 50-60Hz

Secondary2 x 14kV, Ampl. 20mA RMS

Duty CycleED 100%

Ambient/ProtectionTa 50°C, IP00

MarkingCE

OriginMade in Italy

ManufacturerCofi srl

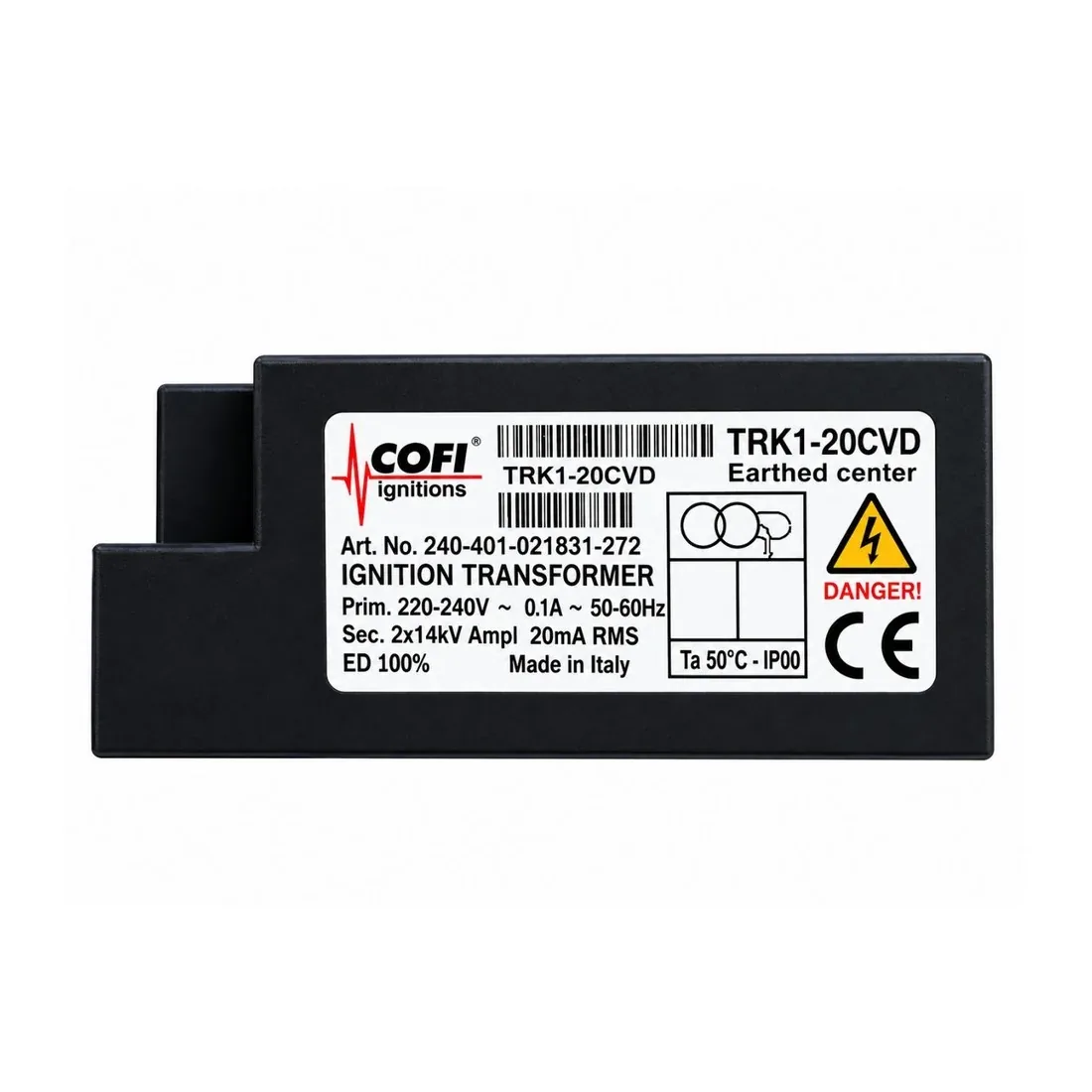

The Cofi TRK1-20CVD is a compact, high-output ignition transformer that steps up a 220-240V, 50-60Hz primary supply (0.1A) to a dual 14kV secondary output (2 x 14kV, 20mA RMS), earthed-centre configuration, for firing the spark electrodes on gas and oil burners. Rated for continuous 100% duty (ED 100%) at an ambient temperature of 50°C, IP00. Manufactured by Cofi srl, Italy, it is CE marked and suited to industrial burner and boiler ignition applications.
