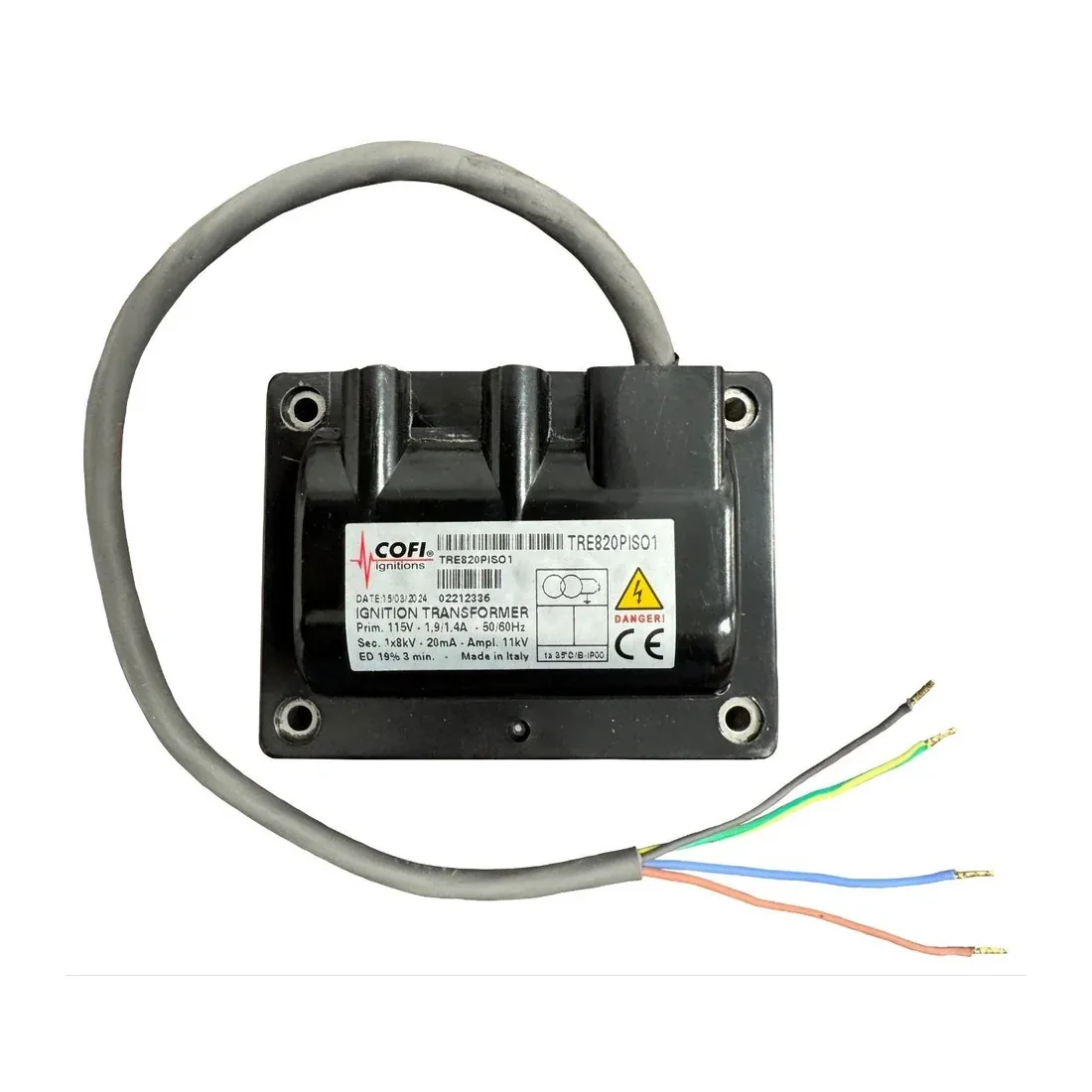

Cofi Ignition Transformer TRE820PISO1

Name: Cofi Ignition Transformer TRE820PISO1
Brand: Cofi
SKU: TRE820PISO1
Availability: InStock

Product Code: TRE820PISO1 · Flying leads

TypeTRE820PISO1

Product Code02212336

Primary115V, 1.9/1.4A, 50/60Hz

Secondary1 x 8kV, 20mA, Ampl. 11kV

Duty CycleED 19% in 3 Min.

Ambient/Protectionta 35°C/B, IP00

MarkingCE

OriginMade in Italy

ManufacturerCofi srl

The Cofi TRE820PISO1 is an ignition transformer that steps up a 115V, 50/60Hz primary supply (1.9/1.4A) to a single 8kV, 20mA secondary output with an amplitude of 11kV, for firing the spark electrode on gas and oil burners. Rated for an intermittent duty cycle of 19% ED within a 3-minute cycle, at an ambient temperature of 35°C/B, IP00. Manufactured by Cofi srl, Italy, it is CE marked and suited to industrial burner and boiler ignition applications.
