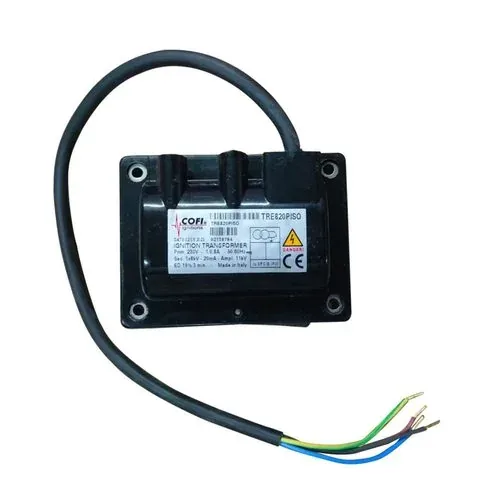

Cofi Ignition Transformer TRE820PISO

Name: Cofi Ignition Transformer TRE820PISO
Brand: Cofi
SKU: TRE820PISO
Availability: InStock

Product Code: TRE820PISO · Flying leads

TypeTRE820PISO

Product Code02198794

Primary230V, 1.0.8A, 50/60Hz

Secondary1 x 8kV, 20mA, Ampl. 11kV

Duty CycleED 19% in 3 Min.

MarkingCE

OriginMade in Italy

ManufacturerCofi srl

The Cofi TRE820PISO is an ignition transformer that steps up a 230V, 50/60Hz primary supply (0.8A) to a single 8kV, 20mA secondary output with an amplitude of 11kV, for firing the spark electrode on gas and oil burners. Rated for an intermittent duty cycle of 19% ED within a 3-minute cycle, it terminates in flying leads for direct wiring into the burner control circuit. Manufactured by Cofi srl, Italy, it is CE marked and suited to industrial burner and boiler ignition applications.
