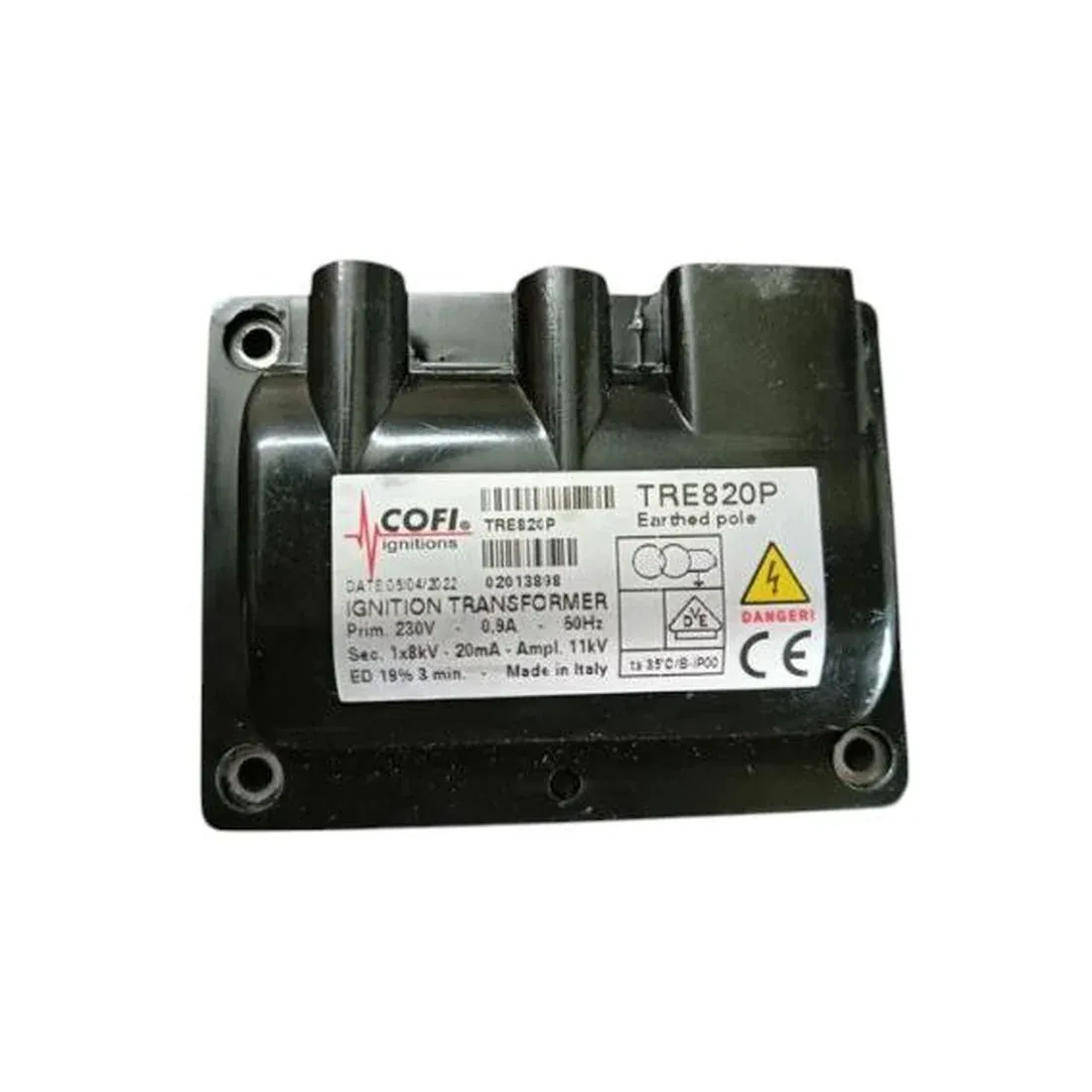

Cofi Ignition Transformer TRE820P

Name: Cofi Ignition Transformer TRE820P
Brand: Cofi
SKU: TRE820P
Availability: InStock

Product Code: TRE820P · Earthed Pole

TypeTRE820P

Product Code02013898

ConfigurationEarthed Pole

Primary230V, 0.9A, 50Hz

Secondary1 x 8kV, 20mA, Ampl. 11kV

Duty CycleED 19% in 3 Min.

Ambient/Protectionta 35°C/B, IP00

MarkingCE

OriginMade in Italy

ManufacturerCofi srl

The Cofi TRE820P is an earthed-pole ignition transformer that steps up a 230V, 50Hz primary supply (0.9A) to a single 8kV, 20mA secondary output with an amplitude of 11kV, for firing the spark electrode on gas and oil burners. Rated for an intermittent duty cycle of 19% ED within a 3-minute cycle, at an ambient temperature of 35°C/B, IP00. Manufactured by Cofi srl, Italy, it is CE marked and suited to industrial burner and boiler ignition applications.
