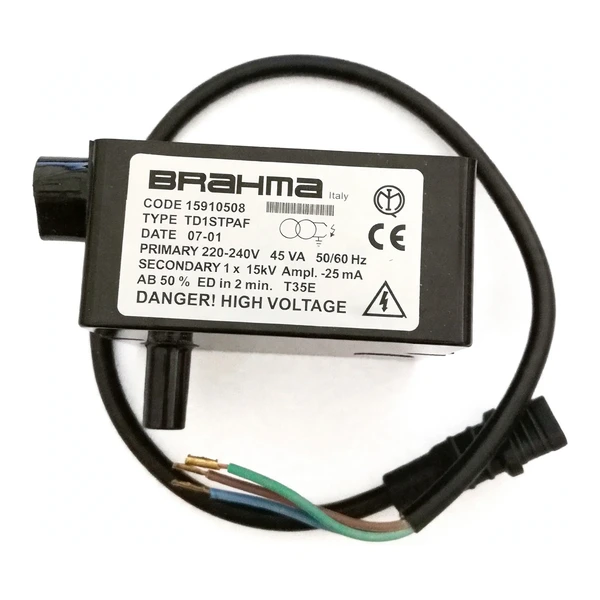

Brahma Ignition Transformer TD1STPAF

Name: Brahma Ignition Transformer TD1STPAF
Brand: Brahma
SKU: 15910508
Availability: InStock

Code: 15910508 · Type TD1STPAF · 220-240V, 50/60Hz

TypeTD1STPAF

Code15910508

Primary220-240V, 45 VA, 50/60Hz

Secondary Voltage1 x 15kV Amplitude

Output Current25 mA

Duty CycleAB 50% ED (2 min. cycle)

Thermal MarkingT35E

Poles1 (single output)

ComplianceCE Marked

The Brahma TD1STPAF is a high-voltage ignition transformer that steps up a 220-240V, 45VA, 50/60Hz mains supply to a single 15kV secondary output rated at 25mA, for firing the spark electrode on gas and oil burners. It has a 50% duty cycle (ED) over a 2-minute cycle, thermal class T35E, and a single HV pole output. Manufactured by Brahma, Italy, it is CE marked for industrial burner and boiler ignition applications.
