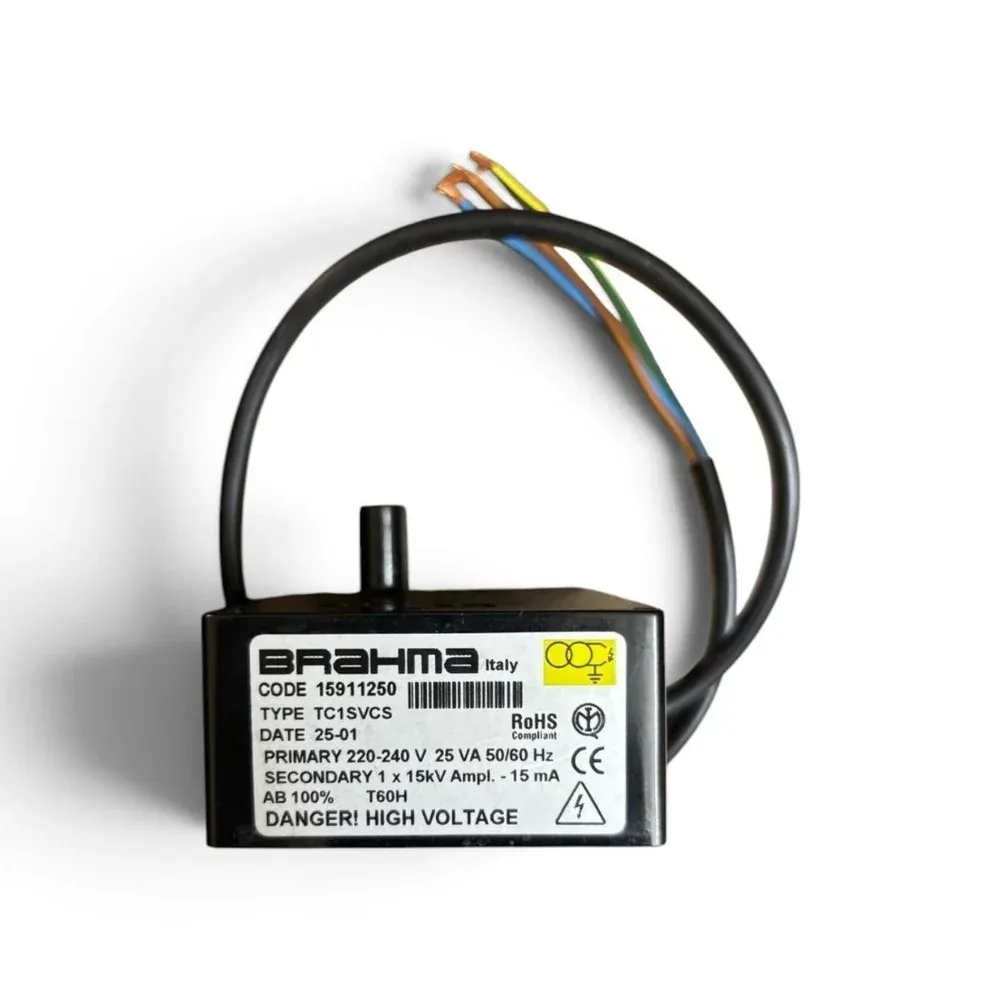

Brahma Ignition Transformer TC1SVCS

Name: Brahma Ignition Transformer TC1SVCS
Brand: Brahma
SKU: 15911250
Availability: InStock

Product Code: 15911250 · Single-Point (1x15kV) Secondary Output

TypeTC1SVCS

Product Code15911250

Primary220–240V, 25VA, 50/60Hz

Secondary1 x 15kV Ampl. – 15mA

Duty CycleAB 100%, T60H

Output PointsSingle-Point (one HV output lead)

ComplianceRoHS Compliant, CE Marked

The Brahma TC1SVCS is a single-point ignition transformer that steps up a 220–240V mains supply to a single 15kV high-voltage secondary output rated at 15mA, for firing the spark electrode on gas and oil burners. Rated for continuous 100% duty (T60H), it delivers a compact, reliable HV source for single-electrode burner ignition systems, with flexible HV lead routing on the transformer body. Manufactured by Brahma, Italy, it is RoHS compliant and CE marked for industrial burner and boiler ignition applications.
