Brahma Flame Relay Sensor RE3 (220–230V) — Code 10801025

Name: Brahma Flame Relay Sensor RE3 (220–230V) — Code 10801025
Brand: Brahma
SKU: 10801025
Availability: InStock

Product Code: 10801025 · 220–230V, 50–60Hz

TypeRE3

Product Code10801025

Supply Voltage220 – 230V

Frequency50 – 60Hz

Power3 VA

Safety Time (TS)max. 1 s

IndicatorsPower (green LED), Flame (red LED)

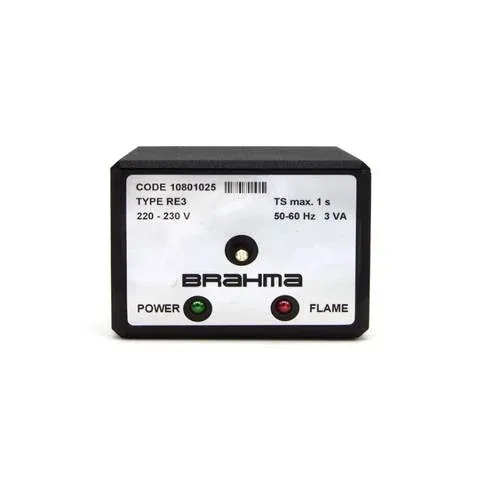

The Brahma RE3 is a flame relay module that takes the signal from a flame sensor (UV cell or photocell) and converts it into a switched relay output confirming flame presence, with a fast maximum safety time of 1 second. Front-panel Power and Flame LED indicators give an instant visual check of supply status and flame signal. This variant runs on a 220–230V, 50–60Hz, 3VA supply, manufactured by Brahma, Italy for burner and boiler flame monitoring and safety circuits.
