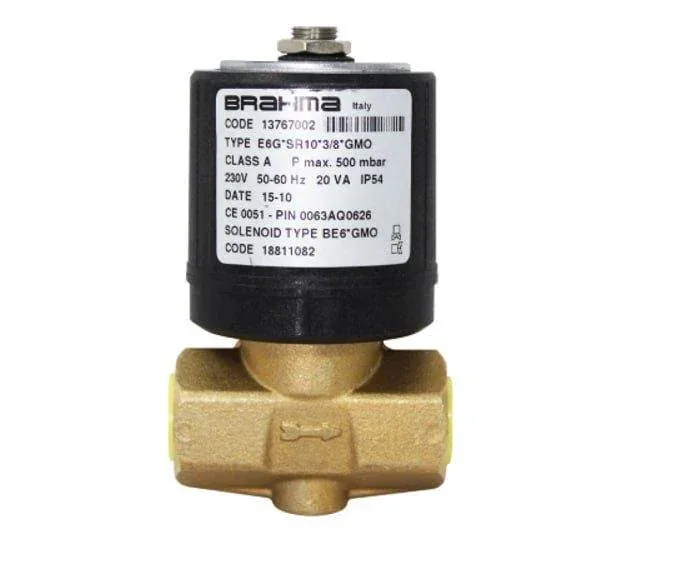

Brahma Solenoid Valve E6GSR103/8*GMO

Name: Brahma Solenoid Valve E6G*SR10*3/8*GMO
Brand: Brahma
SKU: 13767002
Availability: InStock

Product Code: 13767002 · DN10 · 3/8" BSP

TypeE6G*SR10*3/8*GMO

ConnectionDN10 · 3/8" BSP

ClassClass A

Max PressureP max. 500 mbar

Power Supply230V, 50-60Hz, 20VA

ProtectionIP54

Solenoid TypeBE6*GMO · Code 18811082

The Brahma E6G*SR10*3/8*GMO is a Class A automatic gas solenoid valve for burner, boiler and gas-train shut-off duty on 3/8" (DN10) BSP connections. Rated to 500 mbar max inlet pressure with IP54 enclosure protection, it runs on a 230V, 50-60Hz, 20VA coil and pairs with the BE6*GMO solenoid coil — the compact DN10 option for smaller-bore gas lines.
