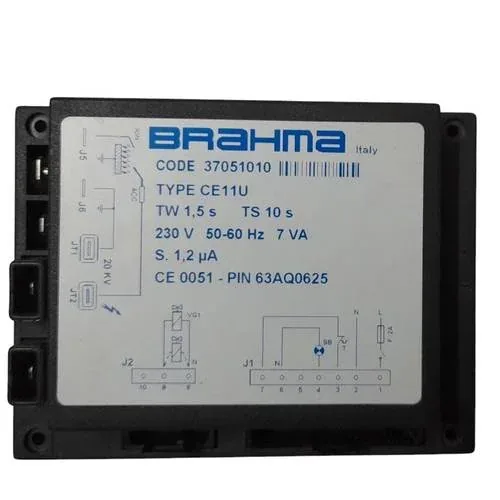

Brahma Sequence Controller CE11U

The Brahma CE11U is a compact burner sequence controller from the Brahma "Control Microflat" series, managing the start-up, ignition, and flame-monitoring cycle for single-valve gas burners with a 1.5-second pre-purge time and a 10-second safety time. It is a lock-out type control, requiring a manual reset via its SB button after a fault, and monitors flame current directly with a minimum detectable signal of 1.2 µA. It drives a 20kV ignition transformer via its JT1/JT2 terminals and supplies a single gas valve through its J2 terminals. Running on a 230V, 50-60Hz, 7VA supply, it is manufactured by Brahma, Italy, for automatic burner control on atmospheric and monobloc gas burners.
